RAHU-87

• Country
• Estonia (Eesti, Tallinn)

• Manufacturer / Brand
• Tallinn Punane RET Radio Works

• Year
• 1987

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78658

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / AA 4x1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RAHU-87 - Tallinn Punane RET Radio Works

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 115 x 160 x 87 mm / 4.5 x 6.3 x 3.4 inch

• Notes

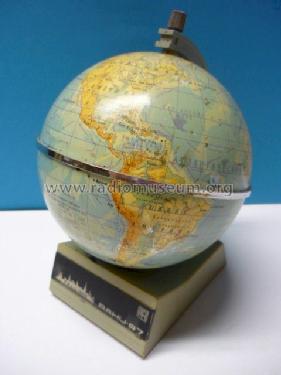

• Souvenir portable radio-globe Rahu-87 (Peace). Volume and power switch on top. Tuning by turning the globe.

  The base is the same as model RAHU with clock and still has the compartment for the clock battery, although it isn't wired.

• Net weight (2.2 lb = 1 kg)
• 0.1 kg / 0 lb 3.5 oz (0.22 lb)

• Price in first year of sale
• 38.00 Rub

• Source of data
• -- Schematic

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
