FM Stereo Receiver TR-1000
Tandberg Radio; Oslo
- Country
- Norway
- Manufacturer / Brand
- Tandberg Radio; Oslo
- Year
- 1972–1974
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 78043
Quelle: Radio Elektronik Schau 11/1972

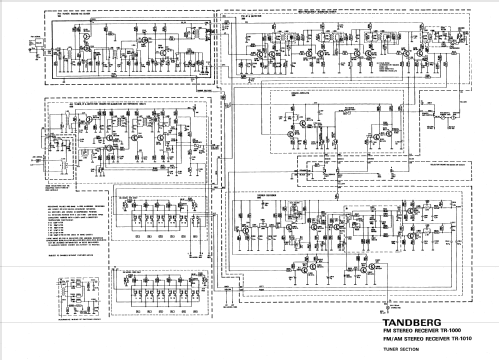

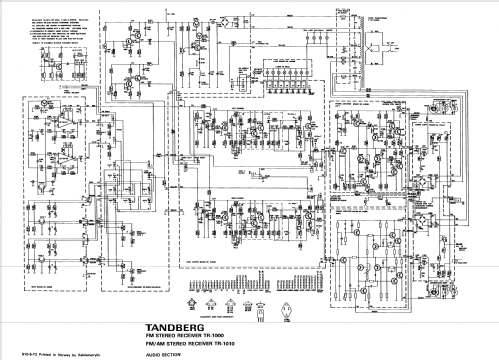

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 62
- Semiconductors
- 40822 40823 BF195 BC148 BF194 BC147 BC149 2N5087 BD165 SPS5384 MPS-U56 BC158 MPS-U06 MJ802 MJ4502 TBA231 BB104 1N4148 AA119 1N4742 B60C800 B80C2200
- Main principle
- Superhet with RF-stage; ZF/IF 10700 kHz
- Tuned circuits
- 14 FM circuit(s)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 100 W (140 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: FM Stereo Receiver TR-1000 - Tandberg Radio; Oslo
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 430 x 120 x 305 mm / 16.9 x 4.7 x 12 inch
- Notes
-
Sechs UKW-Programmtasten; Antenneneingang 75 und 700 Ohm; 2 Messinstrumente, Sinusleistung 2 x 50 Watt; Musikleistung 2 x 70 Watt; Anschluss für 3 Tonbandgeräte; Eingangspegelregler. Gehäuse wahlweise in Nussbaum natur, Teak, Palisander, Eiche, Schleiflack weiß.
Jeder Halbleiter-Typ nur einmal gelistet.
- Net weight (2.2 lb = 1 kg)
- 8.8 kg / 19 lb 6.1 oz (19.383 lb)
- Price in first year of sale
- 2,495.00 NKr.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Ernst Rykkje. See "Data change" for further contributors.
