• Country
• Japan

• Manufacturer / Brand
• TEAC; Tokyo

• Year
• 1976

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 149846

• • Brand: Tascam

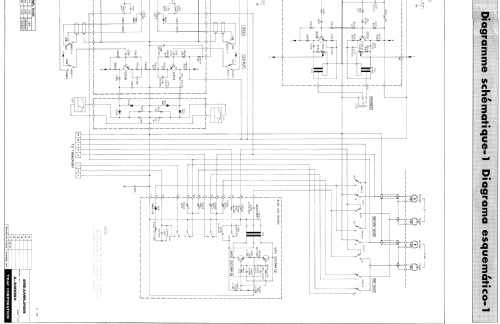

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

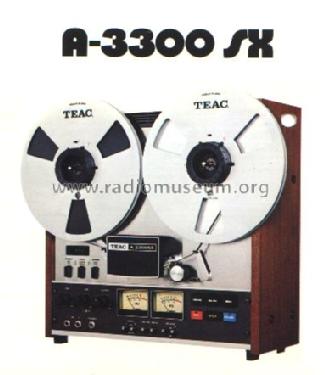

• Model: A-3300SX - TEAC; Tokyo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 440 x 440 x 210 mm / 17.3 x 17.3 x 8.3 inch

• Notes
• 4 Spur, 9,5 und 19 cm/s, drei Motoren , drei Tonköpfe.
  19 cm/s: 30 bis 24000 Hz.
  Laufwerk-Logikschaltung. Getrennte Schalter für Vormagnetisierung und Entzerrung sowie Monitor links und rechts.
  Eingebautes Mischpult. Umschaltbarer Bandzug.

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
