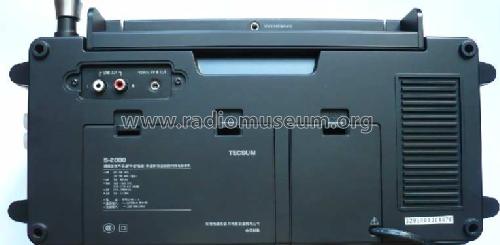

Tecsun 德生 S-2000

Tecsun 德生 S-2000; Tecsun 德生通用电器... (ID = 808589) Radio
Tecsun 德生 S-2000; Tecsun 德生通用电器... (ID = 806377) Radio Tecsun 德生 S-2000; Tecsun 德生通用电器... (ID = 806378) Radio
Tecsun 德生 S-2000; Tecsun 德生通用电器... (ID = 806379) Radio Tecsun 德生 S-2000; Tecsun 德生通用电器... (ID = 806380) Radio
Tecsun 德生 S-2000; Tecsun 德生通用电器... (ID = 806384) Radio Tecsun 德生 S-2000; Tecsun 德生通用电器... (ID = 806385) Radio
Tecsun 德生 S-2000; Tecsun 德生通用电器... (ID = 806388) Radio Tecsun 德生 S-2000; Tecsun 德生通用电器... (ID = 806389) Radio
Tecsun 德生 S-2000; Tecsun 德生通用电器... (ID = 806391) Radio Tecsun 德生 S-2000; Tecsun 德生通用电器... (ID = 806392) Radio
Use red slider bar for more.
Tecsun 德生 S-2000; Tecsun 德生通用电器... (ID = 806377) Radio
Tecsun 德生通用电器...: Tecsun 德生 S-2000 [Radio] ID = 806377 755x429
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tecsun 德生 S-2000, Tecsun 德生通用电器制造有限公司 Tecsun General Electric Manufacturing Co., Ltd; Dongguan (Guangdong, SC)

Country:  People's Republic of China
Manufacturer / Brand:  Tecsun 德生通用电器制造有限公司 Tecsun General Electric Manufacturing Co., Ltd; Dongguan (Guangdong, SC)
Year: 2008 Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Principle Superhet, double/triple conversion; ZF/IF 55845/455/10700 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / AC 220 / 6 Volt

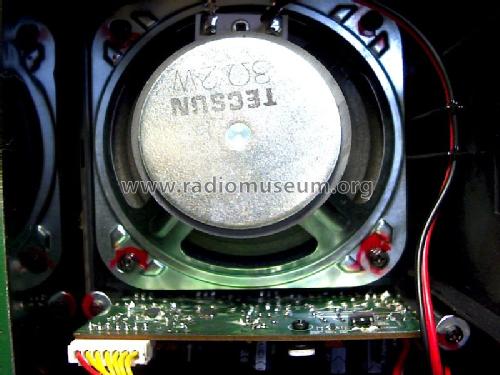

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Tecsun 德生 S-2000 - Tecsun 德生通用电器制造有限公...
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable without mains)
Dimensions (WHD) 372 x 183 x 153 mm / 14.6 x 7.2 x 6 inch

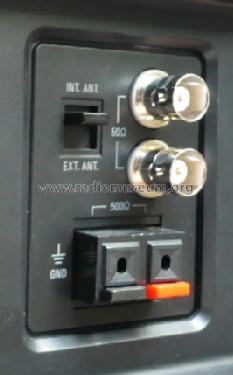

Notes Unlike conventional radios, besides LW/MW/FM/SW, this TECSUN 德生 S-2000 also has air band reception from 118 to 137 MHz. LW is from 100 - 519 kHz, broadcast band 522 - 1620 kHz (520 - 1710 kHz), SW from 1711 - 29999 kHz, Air 118 - 137 MHz, FM 76 - 108 MHz (depending on zone). SSB (S/N = 10 dB) 1 microvolt. SSB and AM double conversion: 55.845 MHz (90 dB) and 455 kHz (80 dB), FM 10.7 MHz (60 dB). KW extl Ant. 50 and 500 Ohm.
Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)
Price in first year of sale 1,500.00 CNY
Collectors' prices
Source of data - - Manufacturers Literature

Model page created by LeungPing HO. See "Data change" for further contributors.



All listed radios etc. from Tecsun 德生通用电器制造有限公司 Tecsun General Electric Manufacturing Co., Ltd; Dongguan (Guangdong, SC)
Here you find 17 models, 16 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
