- Country
- Germany
- Manufacturer / Brand
- TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg
- Year
- 1954/1955
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 19535
-
- alternative name: Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
- Brand: KD

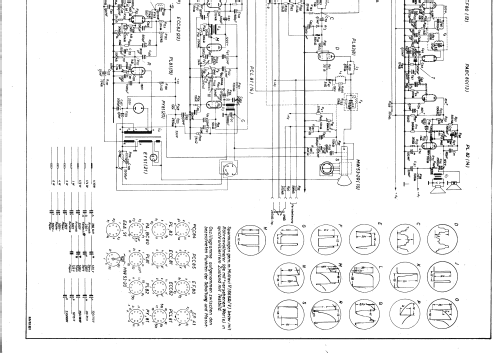

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- PCC84 PCC85 EF80 EF80 EF80 EF80 EAA91 PL83 EF80 EF80 PABC80 PL82 ECC81 ECC82 PCL81 EB41 ECC82 PL81 PY81 EY51 MW53-20
- Main principle
- Superheterodyne (common); ZF/IF 27250 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 3S53 - TeKaDe TKD, Süddeutsche
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 790 x 1000 x 620 mm / 31.1 x 39.4 x 24.4 inch
- Notes
- 10 VHF-Kanäle + 2 Reserve.
- Net weight (2.2 lb = 1 kg)
- 53 kg / 116 lb 11.8 oz (116.74 lb)
- Price in first year of sale
- 1,448.00 DM
- External source of data
- Erb
- Source of data
- Rundfunk- und Fernseh-Katalog 1954/55
