Cathode Ray Oscilloscope 541A (541 A)

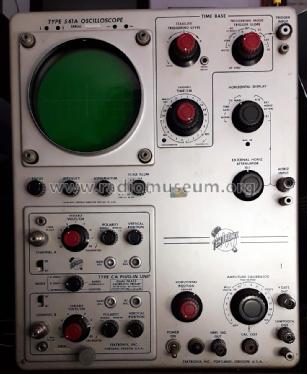

Tektronix, Portland: Cathode Ray Oscilloscope 541A [Equipment] ID = 323350 547x545
|
|
|
| Year: 1959 ? |
Type: Service- or Lab Equipment |
| Principle |
not available |
| Wave bands |
Wave Bands given in the notes. |
| Power type and voltage |
Alternating Current supply (AC) / 105-250 Volt |
| Loudspeaker/pwr.out |
- For headphones or amp.
|
| from Radiomuseum.org |
Model: Cathode Ray Oscilloscope 541A |
| Material |
Metal case |
| Shape |
Tablemodel, with any shape - general. |
| Dimensions (WHD) |
13 x 16.75 x 24 inch / 330 x 425 x 610 mm |
| Notes |
The 541A mainframe used a distributed vertical amplifier to grant 30MHz bandwidth and 12 microseconds risetime. Same as 545A but for single time base. 5BHP2 CRT with 10KV accelerating voltage. 541A accepts all the Tek letter-series vertical plug-ins. |
This model was suggested by Emilio Ciardiello.
All listed radios etc. from Tektronix, Portland, Oregon
Here you find 159 models, 151 with images and 31 with schematics.
