Storage Oscilloscope 214

Storage Oscilloscope 214; Tektronix; Portland, (ID = 332346) Equipment

Storage Oscilloscope 214; Tektronix; Portland, (ID = 332347) Equipment

Storage Oscilloscope 214; Tektronix; Portland, (ID = 332352) Equipment

Storage Oscilloscope 214; Tektronix; Portland, (ID = 332355) Equipment

Storage Oscilloscope 214; Tektronix; Portland, (ID = 332358) Equipment

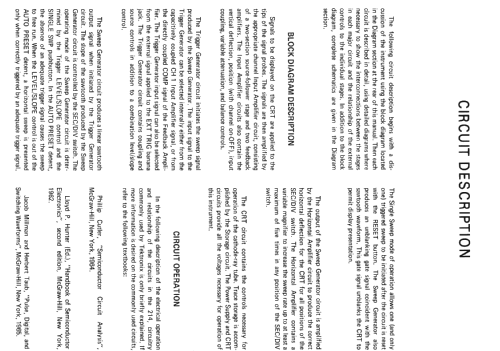

Storage Oscilloscope 214; Tektronix; Portland, (ID = 332361) Equipment

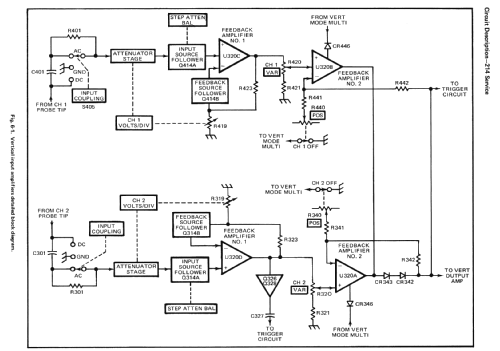

Storage Oscilloscope 214; Tektronix; Portland, (ID = 332362) Equipment

Storage Oscilloscope 214; Tektronix; Portland, (ID = 332371) Equipment

Storage Oscilloscope 214; Tektronix; Portland, (ID = 332372) Equipment

Storage Oscilloscope 214; Tektronix; Portland, (ID = 332373) Equipment
Storage Oscilloscope 214; Tektronix; Portland, (ID = 289859) Equipment Storage Oscilloscope 214; Tektronix; Portland, (ID = 289861) Equipment
Storage Oscilloscope 214; Tektronix; Portland, (ID = 290027) Equipment Storage Oscilloscope 214; Tektronix; Portland, (ID = 290029) Equipment
Storage Oscilloscope 214; Tektronix; Portland, (ID = 290031) Equipment Storage Oscilloscope 214; Tektronix; Portland, (ID = 290032) Equipment
Storage Oscilloscope 214; Tektronix; Portland, (ID = 759872) Equipment Storage Oscilloscope 214; Tektronix; Portland, (ID = 759873) Equipment
Storage Oscilloscope 214; Tektronix; Portland, (ID = 759874) Equipment Storage Oscilloscope 214; Tektronix; Portland, (ID = 759876) Equipment
Use red slider bar for more.
Storage Oscilloscope 214; Tektronix; Portland, (ID = 289859) Equipment
Tektronix; Portland,: Storage Oscilloscope 214 [Equipment] ID = 289859 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Storage Oscilloscope 214, Tektronix; Portland, OR

Country:  United States of America (USA)
Manufacturer / Brand:  Tektronix; Portland, OR
Year: 1974 Category: Service- or Lab Equipment
Valves / Tubes 1: unknown_Tube
Wave bands - without
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 48 to 52 or 58 to 62 Hz; 90 to 110 or 110 to 126 or 220 to 250 / internal DC 12 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Storage Oscilloscope 214 - Tektronix; Portland, OR
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable without mains)
Dimensions (WHD) 132 x 76 x 226 mm / 5.2 x 3 x 8.9 inch
Notes

The Tektronix 214 is a two-channel analoge storage oscilloscope with a bandwidth DC to 500kHz while the time-base operates from 500mS/div to 5μS/div in 1-2-5 ranges, that can be increased to 1μS/div using the variable control. Display Modes: CH1, CH2, CHOP (500 ms/div to 2 ms/div),ALT (1 ms/div to 5 ms/div). Trigger Sensitivity: Internal; 0.2 div at 500 Hz. Stored Writing Speed: Normal; 80 div/ms. Enhanced; 500 div/ms (0.2 ms to 5 s.div).

Power options:
Option 1
for 48 to 52 Hz, 220 to 250 V, includes batteries
Option 2 for 48 to 52 Hz, 90 to 110 V, includes batteries

Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Price in first year of sale 5,165.00 DM
Collectors' prices
Source of data -- Original-techn. papers.
Mentioned in Catalog: Tektronix Products 1974, pp.155, 156

Model page created by Dieter Barkawitz. See "Data change" for further contributors.



All listed radios etc. from Tektronix; Portland, OR
Here you find 312 models, 298 with images and 69 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Tektronix; Portland,: Storage Oscilloscope 214
Threads: 1 | Posts: 1
Hits: 600     Replies: 0
tektronix: 214; Storage Oscilloscope
Bernhard Nagel
24.Sep.15
  1

Zur Stromversorgung der Oszilloskop-Familie TEK 211, 212 und 214 siehe diesen Forumsbeitrag.
