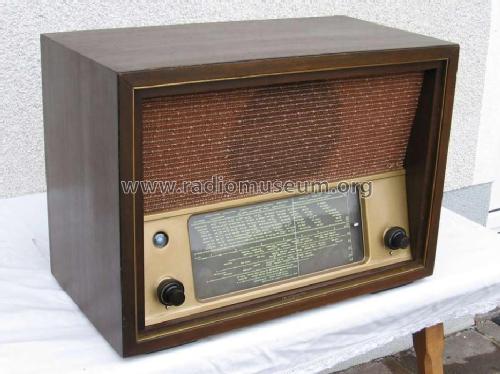

Telefunken: 166WK [Radio] ID = 1146 700x521

For model 166WK (T166WK), Telefunken Deutschland (TFK)

Country:

Germany

Manufacturer/Brand:

Telefunken Deutschland (TFK)

Year: 1941–1944

Type: Radio - or past WW2 tuner

Valves / Tubes

6: ECH11 EBF11 EF11 EL11 EM11 AZ1

Principle	Super-Heterodyne (Super in general); IF-Freq 468 kHz
Tuned circuits	6 AM circuit(s)
Wave bands	Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage	Alternating Current supply (AC) / 110-240 Volt
Loudspeaker	Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 25 cm = 9.8 inch
Power out
from Radiomuseum.org	Model: 166WK - Telefunken Deutschland TFK
Material	Wooden case
Shape	Tablemodel, low profile (big size).
Dimensions (WHD)	610 x 435 x 310 mm / 24 x 17.1 x 12.2 inch
Notes	=Siemens 14W;Export
Net weight (2.2 lb = 1 kg)	18.5 kg / 40 lb 12 oz (40.749 lb)
Collectors' prices	11 Collector prices (for members Radiomuseum.org)
Source of data	Radiokatalog Band 1, Ernst Erb
Circuit diagram reference	Lange+Schenk+FS-Röhrenbestückung
Mentioned in	Funkgeschichte der GFGF (9284)
Picture reference	Das Modell ist im «Radiokatalog» (Erb) abgebildet, das Copyright liegt beim Deutschen Rundfunk Museum (DRM), Berlin und beim Archiv-Verlag (AV). Sie finden eine grössere Abbildung und Schaltbild etc. bei der Loseblatt-Sammlung von DRM/AV.

All listed radios etc. from Telefunken Deutschland (TFK)
Here you find 2782 models, 2334 with images and 1595 with schematics.

Collection of a member from SK
Collection of Urmas Tingas (EST)
Collection of Alois Steiner (A)
Collection of Peter Roggenhofer (A)
Collection of Vincent Baccialone (F)
Collection of Gerhard Heigl (A)
Collection of Zlatan MUMLEK (HR)
Collection of Thorsten Finaske (D)
Collection of Klaus Dräger (CH)

Forum contributions about this model
Telefunken: 166WK
Threads: 2 | Posts: 2

Hits: 648 Replies: 0 telefunken: 166WK; Reparaturhinweis:
Eilert Menke 19.Nov.03	1 telefunken: 166WK; Reparaturhinweis: Achtung: Vor Ausbau des Chassis sind unbedingt sowohl der Skalenzeiger vom Seil abzuklemmen sowie die Bereichsanzeige auszuhaken und in die dafür vorgesehene Halterung an der Schallwand einzuhängen!

Hits: 953 Replies: 0 telefunken: 166WK Super
Gerhard Heigl 10.Oct.02	1 telefunken: 166WK Super Fab.Nr.: F16179, dieses Modell wurde eventuell auch in Österreich (Ostmark) gefertigt. Bereiche LW, MW, 6xKW; 3 Lautsprecher, Glr.Röhre AZ11.

Telefunken: 166WK
End of forum contributions about this model
