• Year
  • 1952/1953
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 114282

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Line / Batteries (any type) / AC: 110; 125; 220 DC: 110; 220 / 9 & 110 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
  • Material
  • Various materials
  • from Radiomuseum.org

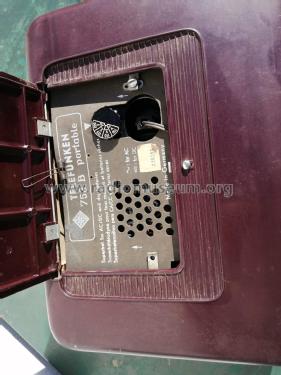

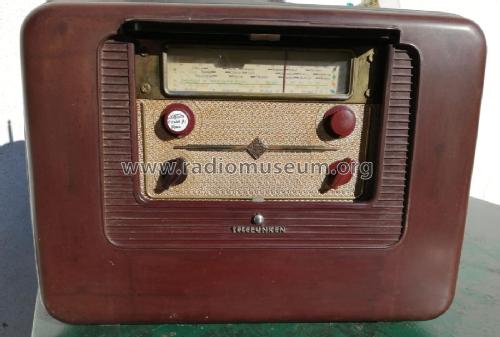

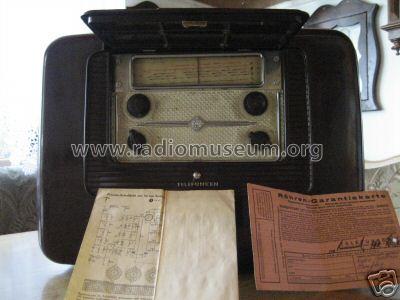

  • Model: 753B portable - Telefunken Deutschland TFK,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 390 x 285 x 150 mm / 15.4 x 11.2 x 5.9 inch
  • Notes
  • 3 Kurzwellenbereiche: I 33-16 m, II 64-30 m, III 185-60 m.

    Ausführung:
    Holzkorpus mit Kunstleder-Überzug, Vorder- und Rückschale sowie Klappen Bakelit.

  • Net weight (2.2 lb = 1 kg)
  • 5.8 kg / 12 lb 12.4 oz (12.775 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Bernhard Nagel. See "Data change" for further contributors.
