• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1954 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82117

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EF89 EBC41 EL41 EZ80

• Main principle
• Superheterodyne (common); Export model

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 100; 118; 150; 200; 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

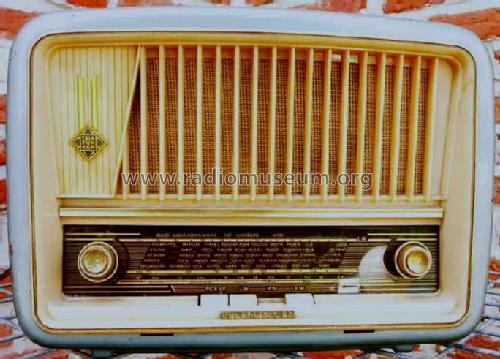

• Model: D657W - Telefunken Deutschland TFK,

• Shape
• Tablemodel with Push Buttons.

• Notes

• Telefunken D657W is an export model.

  See also similar model MD657WKtrop with magic eye.

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
