Gavotte 7 Export; Telefunken (ID = 662772) Radio
Telefunken: Gavotte 7 Export [Radio] ID = 662772 933x657
Select picture or schematic to display from thumbnails on the right and click for download.
For model Gavotte 7 Export, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1956/1957 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Principle Super-Heterodyne (Super in general); Expr model
Wave bands Broadcast, Long Wave, Short Wave plus FM.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240; Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Gavotte 7 Export - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 475 x 335 x 195 mm / 18.7 x 13.2 x 7.7 inch
Notes Supplier in USA:
American Elite Inc., 7 Park Ave., News York, N. Y.
Rectifier AEG B250C75L.
Net weight (2.2 lb = 1 kg) 7.6 kg / 16 lb 11.8 oz (16.74 lb)
Price in first year of sale 2,900.00 PTE
Collectors' prices
Mentioned in -- Original-Prospect

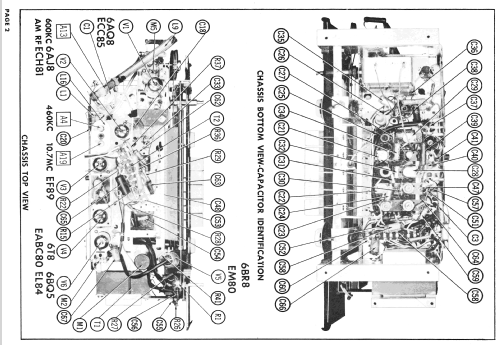

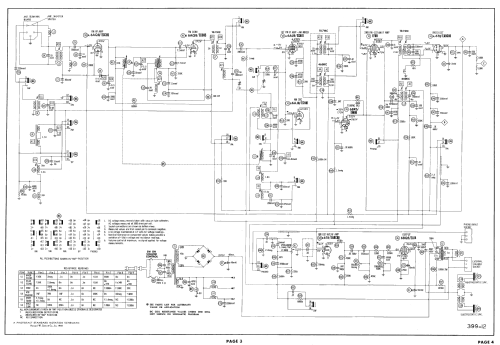

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 5-58, Set 399, Folder 12)

Model page created by Mario Coelho. See "Data change" for further contributors.



All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3118 models, 2674 with images and 1771 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Telefunken: Gavotte 7 Export
Threads: 1 | Posts: 2
Hits: 864     Replies: 1
telefunken: Export; Gavotte 7
Enrico Mercuri
15.Aug.12
  1

Is the FM band 88-108 Mhz (on the Telefunken Gavotte 7 Export model) or is it shorter, such as 88-101 Mhz?

Thanks for a kind reply.

Enrico.



Bernhard Nagel
15.Aug.12
  2

This export version of the Gavotte 7 has an FM range from 87.5 to 100 MHz, which is also mentioned at the schematic:



The Telefunken Gavotte 7 Export [Licensed by Armstrong] covers 88 to 108 MHz, the dial and the schematic indicates it. This model was exported to the U.S.A.

The other ranges are identical, Special is Long Wave.
