• Year
  • 1967–1969
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 27208

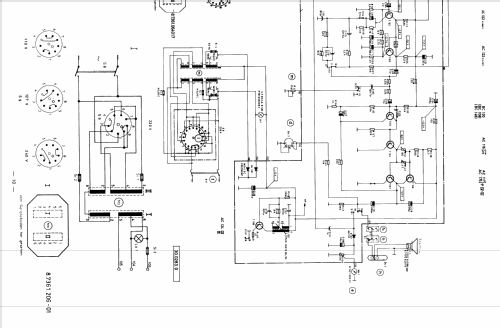

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 8
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Magnetophon 200TS M-200TS - Telefunken Deutschland TFK,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 395 x 160 x 310 mm / 15.6 x 6.3 x 12.2 inch
  • Net weight (2.2 lb = 1 kg)
  • 9.5 kg / 20 lb 14.8 oz (20.925 lb)
  • External source of data
  • erb
  • Literature/Schematics (1)
  • -- Schematic
