- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1949/1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 4126
Quelle_ FS 50xx

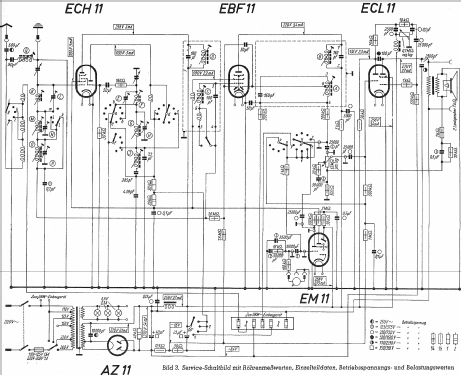

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Ready for FM, has Broadcast, Long Wave, Short wave.
- Power type and voltage
- Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 24 cm = 9.4 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Opus 49 9M65WLK - Telefunken Deutschland TFK,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 540 x 359 x 250 mm / 21.3 x 14.1 x 9.8 inch
- Notes

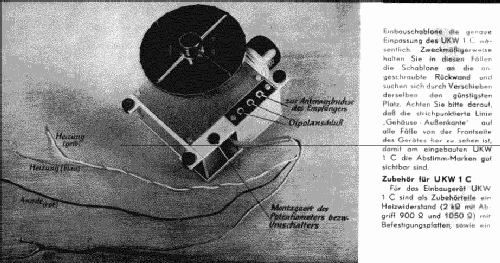

- 2 Mod.[FS4914] Bandbreite schaltbar . Für das Modell Opus 49 konnte man den UKW-Nachrüstsatz Telefunken UKW 1C nachkaufen und mit der Rückwand verschrauben.
- Net weight (2.2 lb = 1 kg)
- 13 kg / 28 lb 10.1 oz (28.634 lb)
- Price in first year of sale
- 498.00 DM
- Source of data
- Katalog Weide, 1949/50. / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange-Nowisch
- Mentioned in
- Funkschau (4919)
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
