• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1977/1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 90037

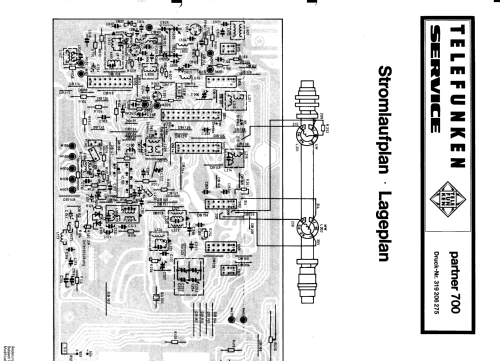

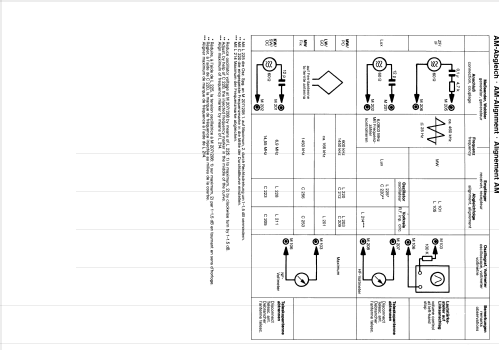

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220; (6 × 1,5) Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Partner 700 - Telefunken Deutschland TFK,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 338 x 237 x 83 mm / 13.3 x 9.3 x 3.3 inch

• Notes
• ICs: 2.
  Luxemburg-"Fixtaste"; AM-"Fixtaste", AFC; Kopfhörer- und DIN-Buchse; elektrischer Umschalter für Batterieregenerierung. Ausgangsleistung bei Netzbetrieb: 5 W.

• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Source of data
• Handbuch VDRG 1977/1978

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Harold Shaw. See "Data change" for further contributors.

• Other Models

• Here you find 3545 models, 3125 with images and 2094 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
