Stereo FM/AM Receiver Modular System TR-500 HiFi

Stereo FM/AM Receiver Modular System TR-500 HiFi; Telefunken (ID = 690730) Radio

Stereo FM/AM Receiver Modular System TR-500 HiFi; Telefunken (ID = 690731) Radio

Stereo FM/AM Receiver Modular System TR-500 HiFi; Telefunken (ID = 690732) Radio

Stereo FM/AM Receiver Modular System TR-500 HiFi; Telefunken (ID = 690733) Radio

Stereo FM/AM Receiver Modular System TR-500 HiFi; Telefunken (ID = 690734) Radio

Stereo FM/AM Receiver Modular System TR-500 HiFi; Telefunken (ID = 690735) Radio

Stereo FM/AM Receiver Modular System TR-500 HiFi; Telefunken (ID = 690736) Radio

Stereo FM/AM Receiver Modular System TR-500 HiFi; Telefunken (ID = 690737) Radio

Stereo FM/AM Receiver Modular System TR-500 HiFi; Telefunken (ID = 690738) Radio

Stereo FM/AM Receiver Modular System TR-500 HiFi; Telefunken (ID = 690739) Radio
Stereo FM/AM Receiver Modular System TR-500 HiFi; Telefunken (ID = 757604) Radio Stereo FM/AM Receiver Modular System TR-500 HiFi; Telefunken (ID = 690757) Radio
Use red slider bar for more.
Stereo FM/AM Receiver Modular System TR-500 HiFi; Telefunken (ID = 757604) Radio

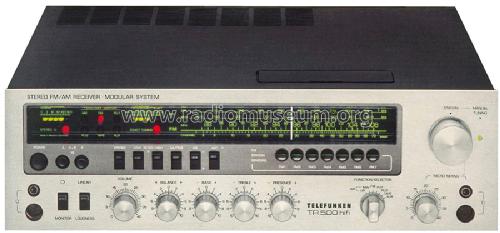

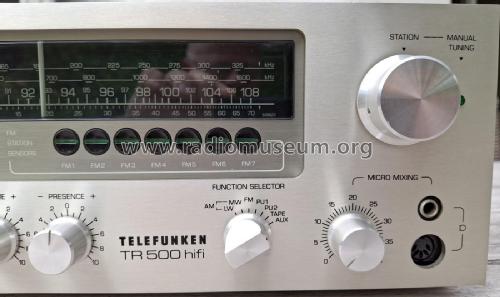

Telefunken: Stereo FM/AM Receiver Modular System TR-500 HiFi [Radio] ID = 757604 900x421

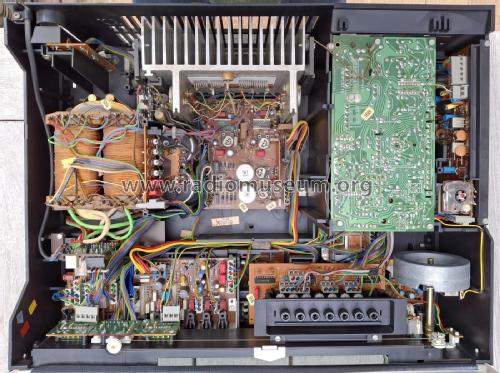

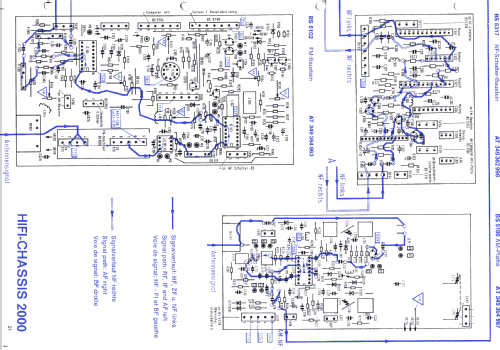

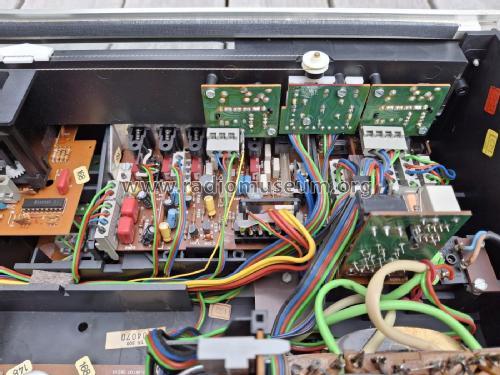

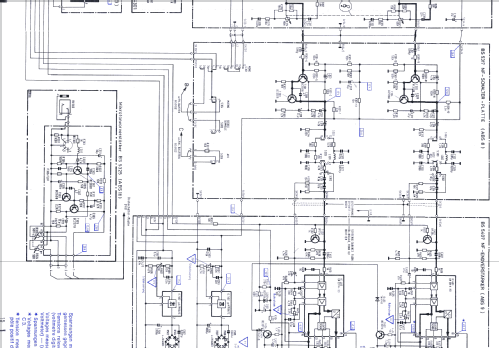

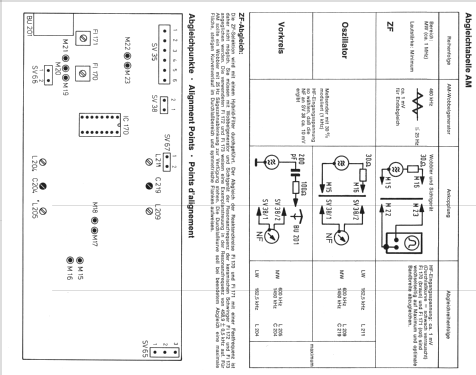

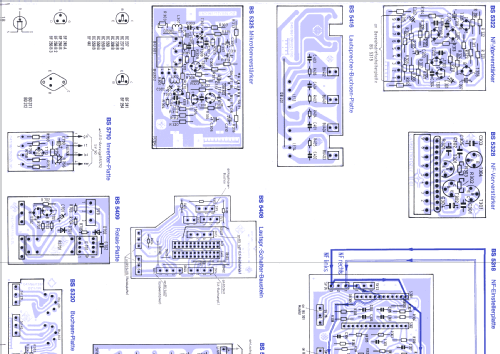

Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo FM/AM Receiver Modular System TR-500 HiFi, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Q: Telefunken Service

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1979 ?? Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 58:
Principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave and FM.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 140 W (unknown quality)
from Radiomuseum.org Model: Stereo FM/AM Receiver Modular System TR-500 HiFi - Telefunken Deutschland TFK,
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 460 x 145 x 350 mm / 18.1 x 5.7 x 13.8 inch
Notes Telefunken FM/AM Receiver Modular System TR-500 HiFi,
2 x 70 Watt Sinusleistung (4 Ohm),
2 x 120 Watt Musikleistung (4 Ohm),
2 x 50 Watt Sinusleistung (8 Ohm),
2 x 70 Watt Musikleistung (8 Ohm).
14 IC.
Mentioned in Original Telefunken Service Unterlagen

Model page created by Josef Pilz. See "Data change" for further contributors.
