Model: Teleport RE/UK/5/2






Antique radios, Old Time Radios

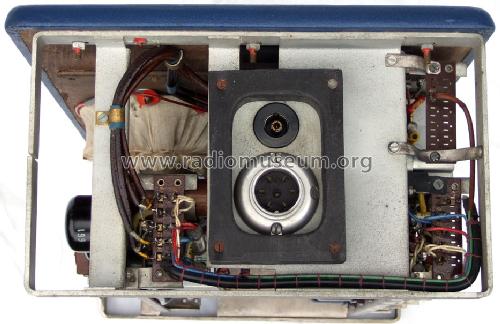

Teleport RE/UK/5/2
Country:
Germany
Manufacturer/Brand:
Telefunken Deutschland (TFK)
Year: 1950
Type:
Receiver used for civil commercial purposes, e.g. point-to-point maritime or aviation communications, used or second hand sets often used by radio amateurs. Often used also for military communications, partly special variants to military specifications.Communication Receiver (also Amateur)
Mod.-ID = 120433
previous
|
Result List
|
next
|
New search for Radios etc.
schematic requested
Schematics etc.: 0 (for
members)
Principle
Superhet with a preamplification stage.
Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne avec préamplification de HF.
Superhet mit HF-Vorstufe.
Superhet with RF-stage
Wave bands
UKW-Gerät ohne weitere Wellenbereiche - muss nicht FM sein!.VHF only (not necessary in FM)
Power type and voltage
AC set plus voltage range.
/ = 2 different voltages
- = voltage from-to
* = «Special»
Apparareil à courant alternatif. Tensions mentionnées.
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl/«Spezial»
Trafo ist nicht immer mit Primär- undSekundärwicklungen versehen. Dadurch kann das Chassis ein gefährlichesPotential führen.Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker/pwr.out
Permanent magnet type moving coil speaker (principle by Rice-Kellog, without field excitation coil).
Haut-parleur avec système dynamique à aimant permanent (sans bobine d`excitation).
Permanentdynamischer Lautsprecher, also (modernes) Tauchspulenprinzip mit Selbsterregung bzw. Permanentmagnet statt Magnetspule. Siehe «Radios von gestern» Seiten 329ff.Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
from Radiomuseum.org
Model: Teleport RE/UK/5/2
Material
Leather / canvas / plastic - over other material
Shape
Portable, e.g. Portable Radio (with or without mains > 8 inch).
Dimensions (WHD)
445 x 330 x 195 mm / 17.5 x 13 x 7.7 inch
Valves / Tubes
13:
Spezielle Ausführung der EF12 als Hochfrequenzverstärkerpentode für FM-ZF- Stufen. Metallkolben an eigenem Stift.EF12spez.
(more
for members)
Notes
Für den NWDR entwickelte drahtlose Mikrofon-Übertragungsanlage, Frequenzbereich ca. 52MHz, frequenzmoduliert.
Hier nur Empfänger und zugehörige separate Stromversorgung Typ REZ/N1 (270x200x140mm, 7,7kg) erfasst.
This model was suggested by Bernhard Nagel.
Anschluß Leitungsausgang für den Ü-Wagen, erdfrei symmetrisch (Trennübertrager).
