• Year
  • 1933–1938
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 216578

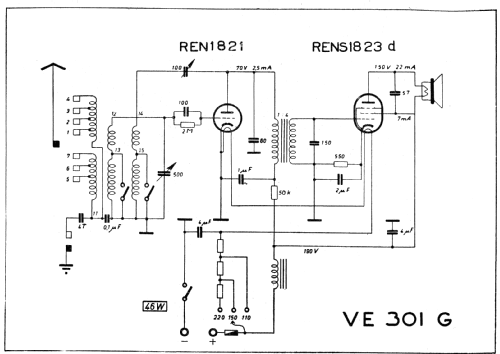

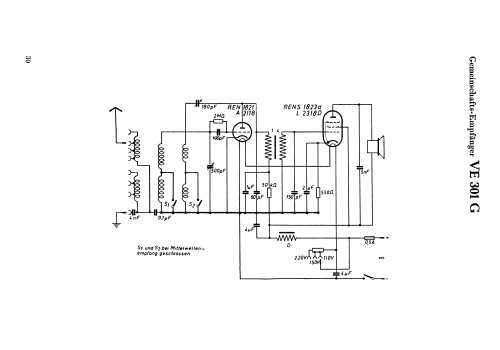

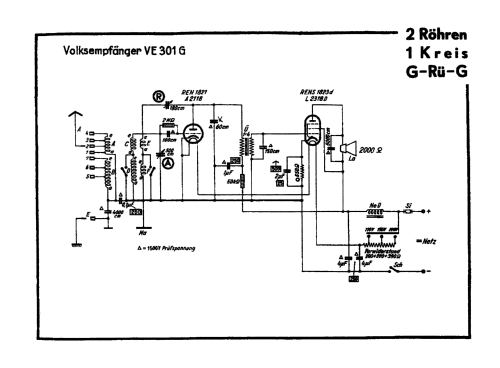

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • TRF with regeneration; 1 AF stage(s)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Direct Current supply (DC) / 110; 150; 220 Volt
  • Loudspeaker
  • Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931).
  • Material
  • Wooden case
  • from Radiomuseum.org

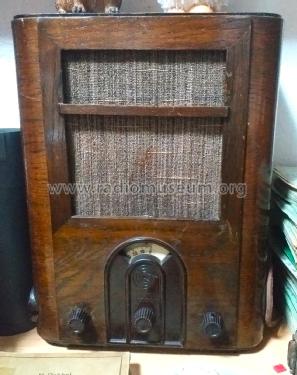

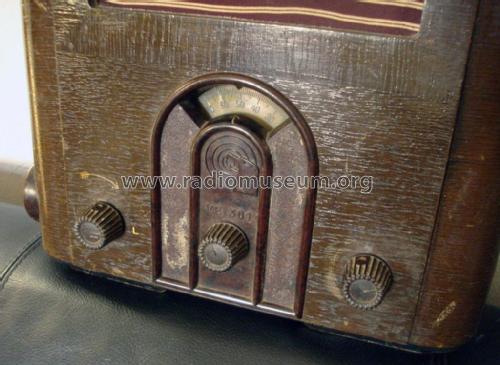

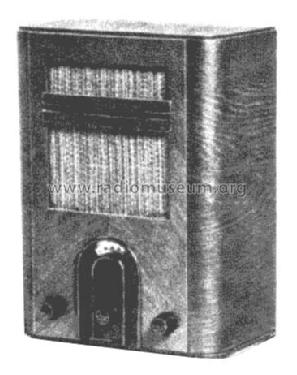

  • Model: VE301G - Telefunken Deutschland TFK,
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 295 x 393 x 175 mm / 11.6 x 15.5 x 6.9 inch
