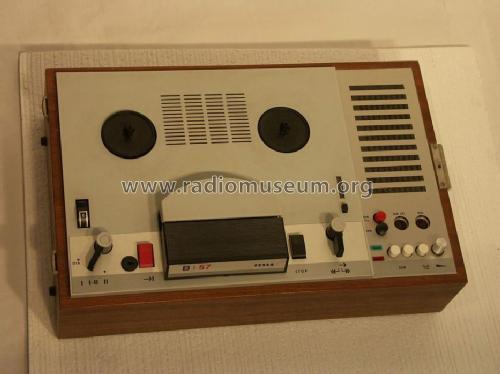

B57 ANP237; Tesla; Praha, (ID = 123435) R-Player
Tesla; Praha,: B57 ANP237 [R-Player] ID = 123435 933x699

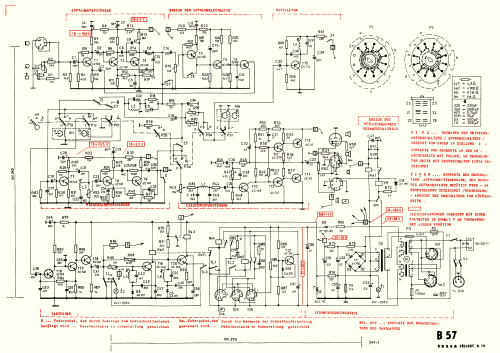

Select picture or schematic to display from thumbnails on the right and click for download.
For model B57 ANP237, Tesla; Praha, Bratislava etc.

Country:  Czechoslovakia
Manufacturer / Brand:  Tesla; Praha, Bratislava etc.
Brand

Supraphon
Year: 1972–1975 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 120 - 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: B57 ANP237 - Tesla; Praha, Bratislava etc.

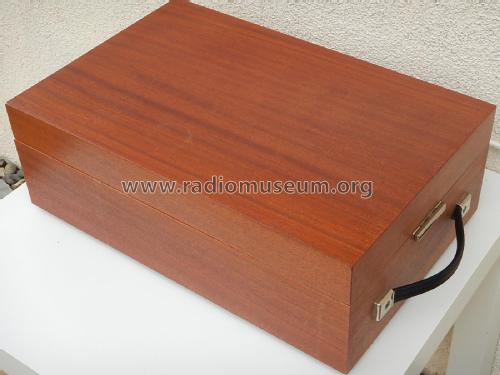

Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 460 x 300 x 150 mm / 18.1 x 11.8 x 5.9 inch
Notes Tonbandgerät speziell für Schulen produziert. Mit Steuerung für Diaprojektor. Frequenzbereich 50-12000 Hz, Spulendurchmesser max. 18 cm, Bandgeschwindigkeit 9,53 cm/s. Holzgehäuse, oben und unten Plasteabdeckung. Available sychro start for slide projektor.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Collectors' prices
Source of data -- Original prospect or advert
Mentioned in Magnetofony 2, 1971-1975, Bozdech J., 1979

Model page created by Wolfgang Lill. See "Data change" for further contributors.
