AMD105

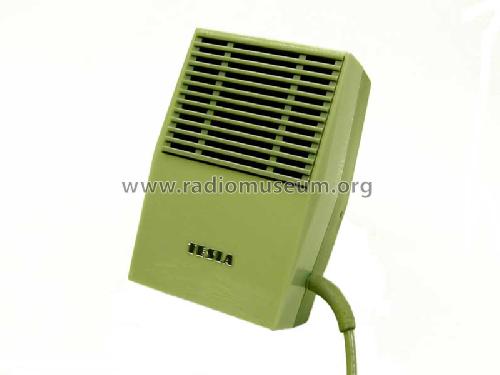

AMD105; Tesla; Praha, (ID = 2070217) Microphone/PU AMD105; Tesla; Praha, (ID = 752377) Microphone/PU

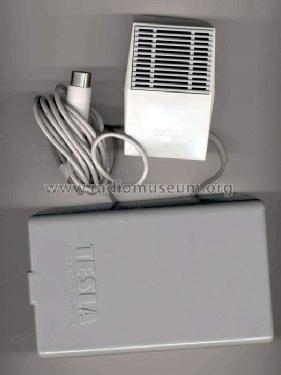

AMD105; Tesla; Praha, (ID = 419474) Microphone/PU AMD105; Tesla; Praha, (ID = 752376) Microphone/PU
AMD105; Tesla; Praha, (ID = 752378) Microphone/PU AMD105; Tesla; Praha, (ID = 752379) Microphone/PU
AMD105; Tesla; Praha, (ID = 2070218) Microphone/PU AMD105; Tesla; Praha, (ID = 2070219) Microphone/PU

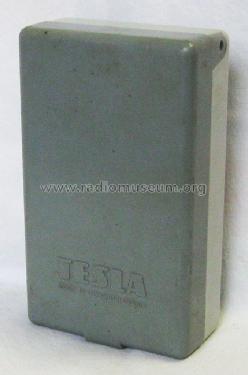

AMD105; Tesla; Praha, (ID = 2070220) Microphone/PU
Use red slider bar for more.
AMD105; Tesla; Praha, (ID = 2070217) Microphone/PU
Tesla; Praha,: AMD105 [Microphone/PU] ID = 2070217 1012x1024
Select picture or schematic to display from thumbnails on the right and click for download.
For model AMD105, Tesla; Praha, Bratislava etc.

Country:  Czechoslovakia
Manufacturer / Brand:  Tesla; Praha, Bratislava etc.
Brand

Supraphon
Year: 1960 ? Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AMD105 - Tesla; Praha, Bratislava etc.
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 55 x 80 x 35 mm / 2.2 x 3.1 x 1.4 inch
Notes Elektrodynamisches Mikrofon, Übertragungsbereich: 50...12500 Hz, Ausgangsimpedanz: 200 Ohm, Kugelcharakteristik. Speziell zum Tonbandgerät B3 produziert.
Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Mentioned in -- Original-techn. papers.

Model page created by Wolfgang Lill. See "Data change" for further contributors.
