• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 167401

• • Brand: Supraphon

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EBF89 EAA91 EM84 ECL86 ECL86

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 120/220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

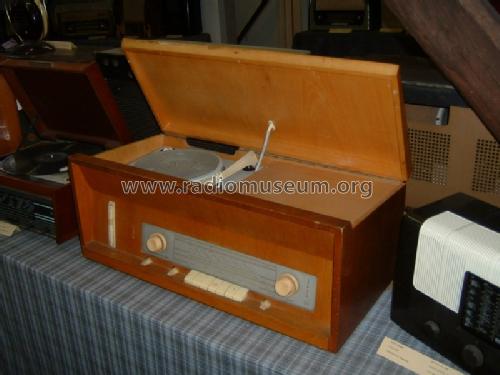

• Model: Capricio 1020A - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 715 x 285 x 350 mm / 28.1 x 11.2 x 13.8 inch

• Notes
• FM in OIRT band. Two additional loudspeaker boxes 370 × 292 × 178 mm. Without stereodecoder.

• Author
• Model page created by Gabriel Toth. See "Data change" for further contributors.
