Mimosa 4213U1
Tesla; Praha, Bratislava etc.
- Country
- Czechoslovakia
- Manufacturer / Brand
- Tesla; Praha, Bratislava etc.
- Year
- 1964
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 110266
-
- Brand: Supraphon

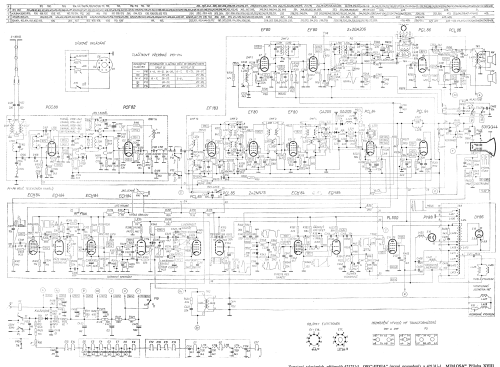

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Mimosa 4213U1 - Tesla; Praha, Bratislava etc.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 570 x 520 x 440 mm / 22.4 x 20.5 x 17.3 inch
- Notes
- 53 cm B/W TV, 12 channel OIRT VHF tuner, some tubes equipped more then one times, print chassis.
- Net weight (2.2 lb = 1 kg)
- 27.5 kg / 60 lb 9.2 oz (60.573 lb)
- Price in first year of sale
- 4,650.00 CSK
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
