AZ25

AZ25; Thorens SA; St. (ID = 348724) Ampl/Mixer
AZ25; Thorens SA; St. (ID = 1874000) Ampl/Mixer AZ25; Thorens SA; St. (ID = 1876895) Ampl/Mixer
Use red slider bar for more.
AZ25; Thorens SA; St. (ID = 1874000) Ampl/Mixer

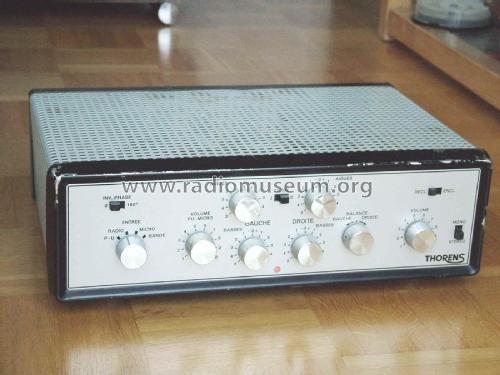

Thorens SA; St.: AZ25 [Ampl/Mixer] ID = 1874000 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model AZ25, Thorens SA; St. Croix

Country:  Switzerland
Manufacturer / Brand:  Thorens SA; St. Croix
alternative name

Thorens Inc., N.Y.
Year: 1963 ? Category: Audio Amplifier or -mixer

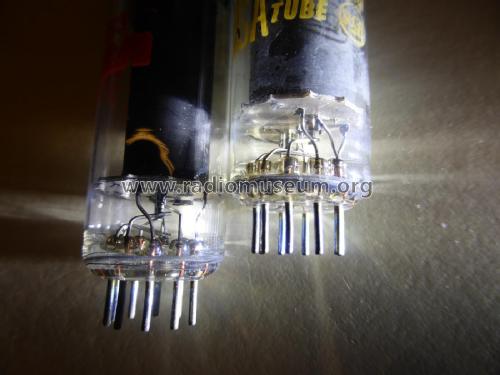

Valves / Tubes 12: ECC83 ECC83 ECC83 ECC83 ECC83 ECC83 ECC83 ECC83 6973 6973 6973 6973
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 250 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: AZ25 - Thorens SA; St. Croix
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 400 x 125 x 295 mm / 15.7 x 4.9 x 11.6 inch
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Walter Schäppi. See "Data change" for further contributors.
