- Country
- United States of America (USA)
- Manufacturer / Brand
- Summit International Corp.; New York
- Year
- 1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 183425
In leather case

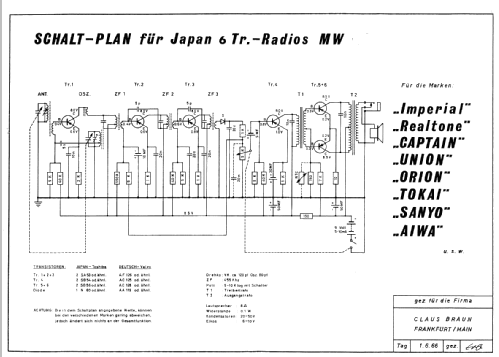

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / PP3: 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

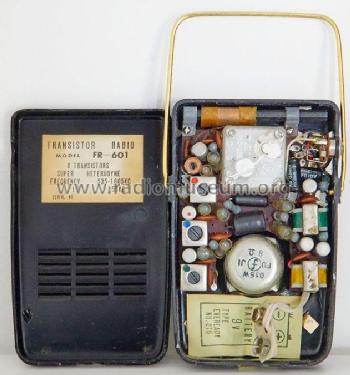

- Model: FR-601 - Summit International Corp.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-
ABS cabinet , metal stand on back, various cabinet colors known, leather case. Gross weight including original packaging: 350 grams.
One out of several similar FR-601 types: Honey Tone, Windsor, Pacific, Roberts.
Possibly manufactured by Tokai Wireless Co., Ltd.
- Net weight (2.2 lb = 1 kg)
- 0.210 kg / 0 lb 7.4 oz (0.463 lb)
- Mentioned in
- Transistor Radios 1954-68 (p.106)
- Literature/Schematics (1)
- Collector's Guide To TrR1 Bunis trans.94 (1996, page 267)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
