Six Transistor 6 TP-309 A

Toshiba Corporation; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Toshiba Corporation; Tokyo

Year
1959

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
107856

- alternative name: Shibaura Engineering Works
- Brand: Tokyo Shibaura

Schematics

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 1684956) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (3)

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 800046) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (2)
Ebay 270597595487

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 275153) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (2)
Q = ebay, objnr: 120056996591

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 800047) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (2)
Ebay 270597595487

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 262953) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (2)

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 275152) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (2)
Q = ebay, objnr: 120056996591

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 275154) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (2)
Q = ebay, objnr: 120056996591

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 800049) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (2)
Ebay 270597595487

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 1376270) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (1)

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 1376271) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (1)

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 1376272) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (1)

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 1376273) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (1)

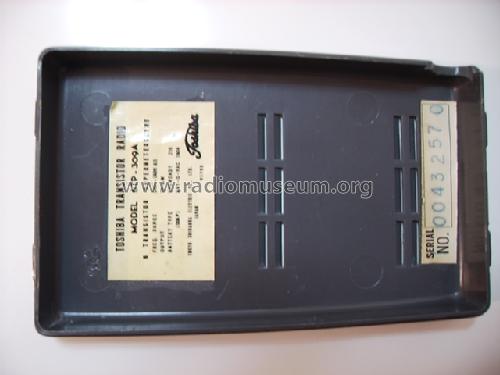

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 1376274) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (1)

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 1376275) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (1)

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 1376276) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (1)

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 1732160) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (2)

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 1732162) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (2)

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 1732164) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (2)

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 1874477) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (1)

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 1874478) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (1)

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 1874479) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (1)

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 1874480) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (1)

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 2223312) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (1)

Six Transistor 6 TP-309 A; Toshiba Corporation; (ID = 2810116) Radio — Toshiba Corporation; Six Transistor 6 TP-309 A (2)
Toshiba Print Ad

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
6

Semiconductors
2S52 or. 2SA52 2S49 or. 2SA40 2S53 or. 2SA53 2S54 or. 2SB54 2S56 or. 2SB54 2S56 or. 2SB54 1N60

Main principle
Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Dry Batteries / 006P: 1 x 9 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

Power out
0.07 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Six Transistor 6 TP-309 A - Toshiba Corporation; Tokyo

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
2.63 x 4.13 x 1.25 inch / 67 x 105 x 32 mm

Notes
Available in Black, White or Gray
Complete with Battery, Earphone and Genuine Leather Carrying Case

Made in Japan.

Price in first year of sale
29.95 USD

Mentioned in
-- Schematic

Author
Model page created by Peter Hoddow. See "Data change" for further contributors.
