Crowncorder CTR 5400

Crown Radio Corp.; Tokyo

  • Year
  • 1965 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 107967
    • alternative name: Asahi Radio Mfg. Co., Ltd

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage

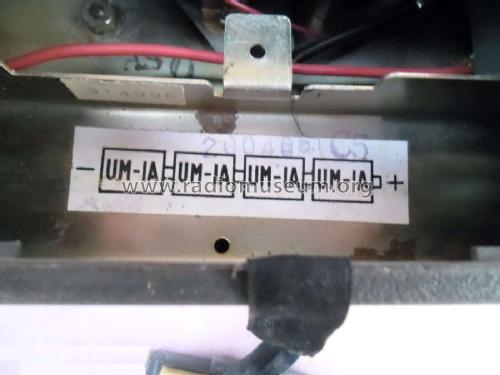

  • Batteries / addl. power jack / D: 4 x 1.5 / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.7 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Crowncorder CTR 5400 - Crown Radio Corp.; Tokyo
  • Dimensions (WHD)
  • 276 x 230 x 110 mm / 10.9 x 9.1 x 4.3 inch
  • Notes
  • Double track; 9 and 4,75 cm/sec.

    Very similar model is the AC/Battery version Crowncorder CTR 5450.

  • Net weight (2.2 lb = 1 kg)
  • 2.5 kg / 5 lb 8.1 oz (5.507 lb)
  • Price in first year of sale
  • 3,980.00 BFr
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Hugo Sneyers. See "Data change" for further contributors.
