• Country
• Japan

• Manufacturer / Brand
• Toshiba Corporation; Tokyo

• Year
• 1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 143500

• • alternative name: Shibaura Engineering Works
  • Brand: Tokyo Shibaura

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 48

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 74 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

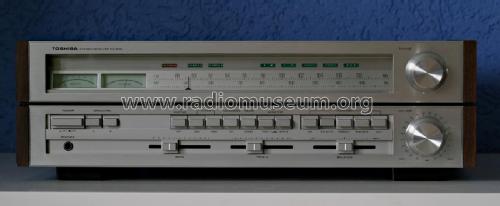

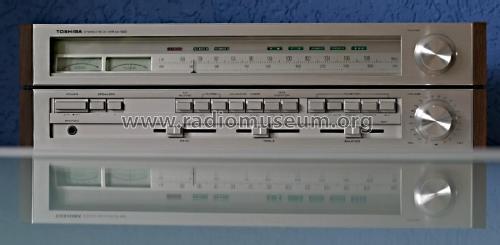

• Model: SA-520 - Toshiba Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 530 x 158 x 435 mm / 20.9 x 6.2 x 17.1 inch

• Notes
• ICs: 2
  AM/FM-Stereo-Receiver mit 2× 37 Watt (Sinus) an 4 Ohm.

• Net weight (2.2 lb = 1 kg)
• 18.5 kg / 40 lb 12 oz (40.749 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
