• Country
• Japan

• Manufacturer / Brand
• Toshiba Corporation; Tokyo

• Year
• 1989–1992

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 254860

• • alternative name: Shibaura Engineering Works
  • Brand: Tokyo Shibaura

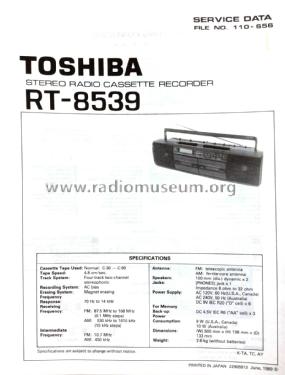

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 450 / 10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player; Radio with other functions

• Power type and voltage
• Line / Batteries (any type) / AC 220 / D: 6 x 1.5 & AA: 3 x 1.5 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 10 cm = 3.9 inch

• Power out
• 16 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

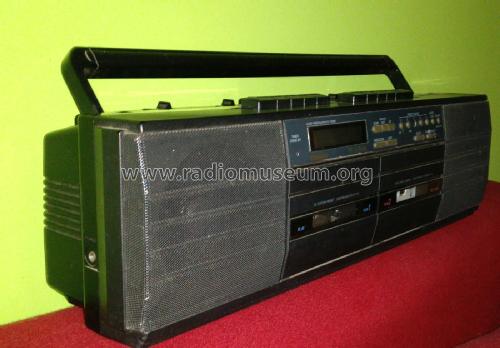

• Model: Stereo Radio Cassette Recorder RT-8539 [4 bands] - Toshiba Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 500 x 138 x 133 mm / 19.7 x 5.4 x 5.2 inch

• Notes

• Stereo Radio Cassette Recorder RT-8539 with clock and timer.

  Frequency ranges:
  FM = 87.5 - 108 MHz
  SW = 5.95 - 15.6 MHz
  MW = 531 - 1602 kHz
  LW = 146 - 281 kHz

  Uses 3 x 1.5 V "AA" batteries for memory and clock (technical data specifies only 2 batteries).

  Made in China.

• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Mentioned in

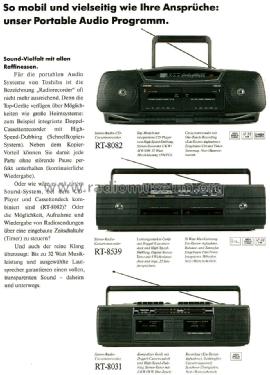

• -- Original prospect or advert (AV-Programm 1991/92)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
