DC Power Supply PS-6

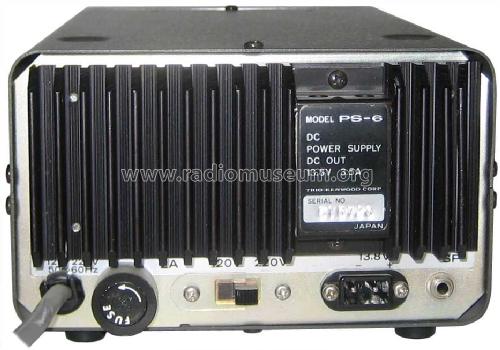

DC Power Supply PS-6; Trio-Kenwood (ID = 1349292) Power-S DC Power Supply PS-6; Trio-Kenwood (ID = 1349293) Power-S
DC Power Supply PS-6; Trio-Kenwood (ID = 1349294) Power-S
Use red slider bar for more.
DC Power Supply PS-6; Trio-Kenwood (ID = 1349292) Power-S
Trio-Kenwood: DC Power Supply PS-6 [Power-S] ID = 1349292 933x694
Select picture or schematic to display from thumbnails on the right and click for download.
For model DC Power Supply PS-6, Trio-Kenwood Electronic Inc.; Komagane

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1975 ?? Type: Power supply or battery or charger
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out
from Radiomuseum.org Model: DC Power Supply PS-6 - Trio-Kenwood Electronic Inc.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 150 x 90 x 235 mm / 5.9 x 3.5 x 9.3 inch
Notes

Kenwood DC Power Supply PS-6.

Ausgang 13,8 V bei 3,5 A; eingebauter Lautsprecher.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
