KR-9940 KR-9040 (Japanese market)

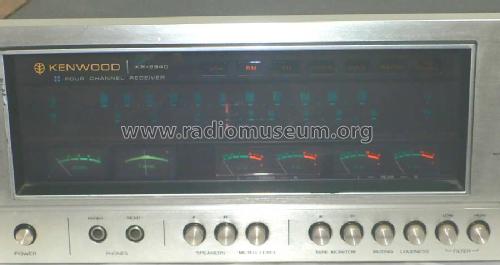

KR-9940; Trio-Kenwood (ID = 314759) Radio KR-9940; Trio-Kenwood (ID = 314760) Radio

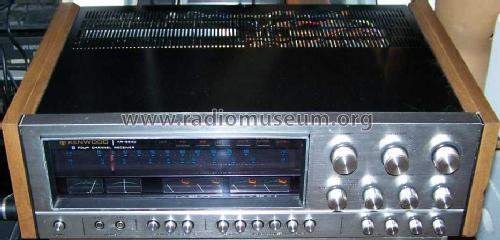

KR-9940; Trio-Kenwood (ID = 314761) Radio KR-9940; Trio-Kenwood (ID = 1230681) Radio
Use red slider bar for more.
KR-9940; Trio-Kenwood (ID = 314759) Radio
Trio-Kenwood: KR-9940 [Radio] ID = 314759 900x487
Select picture or schematic to display from thumbnails on the right and click for download.
For model KR-9940 KR-9040 (Japanese market), Trio-Kenwood Electronic Inc.; Komagane

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1974–1976 Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 135:
Principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM.
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 200 W (unknown quality)
from Radiomuseum.org Model: KR-9940 [KR-9040 ] - Trio-Kenwood Electronic Inc.;
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 535 x 165 x 430 mm / 21.1 x 6.5 x 16.9 inch
Notes Quadrophonie-Receiver, 4 separate Endstufen á 50 W, RMS: 600 Watt an 8 Ω.
Net weight (2.2 lb = 1 kg) 22 kg / 48 lb 7.3 oz (48.458 lb)
Collectors' prices
Source of data - - Data from my own collection

Model page created by Peter Böhm. See "Data change" for further contributors.
