Driver Unit MAH

Driver Unit MAH ; UCP University (ID = 1314906) Speaker-P Driver Unit MAH ; UCP University (ID = 1314907) Speaker-P
Use red slider bar for more.
Driver Unit MAH ; UCP University (ID = 1314906) Speaker-P
UCP University: Driver Unit MAH [Speaker-P] ID = 1314906 677x463
Select picture or schematic to display from thumbnails on the right and click for download.
For model Driver Unit MAH, UCP University Loudspeakers Inc., White Plains, NY:

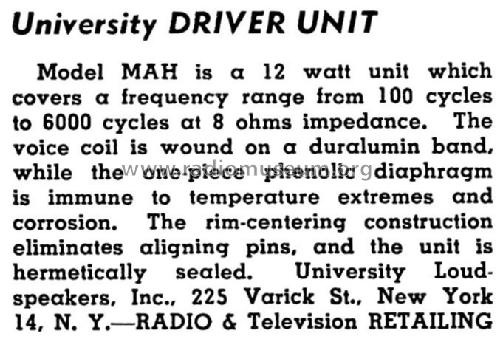

Scanned from the Radio & Television Retailing August 1947 page 102

Country:  United States of America (USA)
Manufacturer / Brand:  UCP University Loudspeakers Inc., White Plains, NY
Brand

University
Year: 1947 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Driver Unit MAH - UCP University Loudspeakers
Shape Miscellaneous shapes - described under notes.
Notes

Model MAH is a 12 watt unit which covers a frequency range from 100 cycles to 6000 cycles at 8 ohms impedance. The voice coil is wound on a duralumin band, while the one-piece phenolic diaphragm is immune to temperature extremes and corrosion. The rim-centering construction eliminates aligning pins, and the unit is hermetically sealed.

Source of data Radio Retailing (Radio & Television R.)

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
