S-8 Classic 3-way Deluxe

S-8 Classic 3-way Deluxe ; UCP University (ID = 2070227) Speaker-P S-8 Classic 3-way Deluxe ; UCP University (ID = 405291) Speaker-P
S-8 Classic 3-way Deluxe ; UCP University (ID = 2070228) Speaker-P S-8 Classic 3-way Deluxe ; UCP University (ID = 2070229) Speaker-P
S-8 Classic 3-way Deluxe ; UCP University (ID = 2070230) Speaker-P S-8 Classic 3-way Deluxe ; UCP University (ID = 2070231) Speaker-P
S-8 Classic 3-way Deluxe ; UCP University (ID = 2070232) Speaker-P S-8 Classic 3-way Deluxe ; UCP University (ID = 2070234) Speaker-P
S-8 Classic 3-way Deluxe ; UCP University (ID = 2070235) Speaker-P S-8 Classic 3-way Deluxe ; UCP University (ID = 2070237) Speaker-P
Use red slider bar for more.
S-8 Classic 3-way Deluxe ; UCP University (ID = 2070227) Speaker-P
UCP University: S-8 Classic 3-way Deluxe [Speaker-P] ID = 2070227 1232x976
Select picture or schematic to display from thumbnails on the right and click for download.
For model S-8 Classic 3-way Deluxe, UCP University Loudspeakers Inc., White Plains, NY:
aus ebay, #201788138246, mit Erlaubnis des Verkäufers mono

Country:  United States of America (USA)
Manufacturer / Brand:  UCP University Loudspeakers Inc., White Plains, NY
Brand

University
Year: 1956 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker
Power out
from Radiomuseum.org Model: S-8 Classic 3-way Deluxe - UCP University Loudspeakers
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 40.5 x 34.5 x 24.8 inch / 1029 x 876 x 630 mm

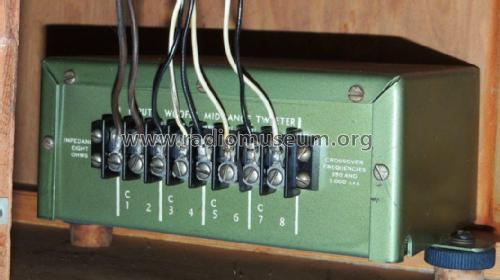

Notes 50W, 8 ohms speaker system, using C15W, 15" woofer, Cobreflex-2 with T-30 driver midrange and HF-206 super-tweeter. May be used as 'lowboy' or as 'highboy' moving the adjustable base.
Available in mahogany or blond.
Also available the enclosure only, EN-C
Price in first year of sale 395.00 $
Literature/Schematics (1) The Radio-Electronic Master Buying Guide, 1956

Model page created by Emilio Ciardiello. See "Data change" for further contributors.
