• Country
• Germany

• Manufacturer / Brand
• Uher Werke; München

• Year
• 1973–1977

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 29200

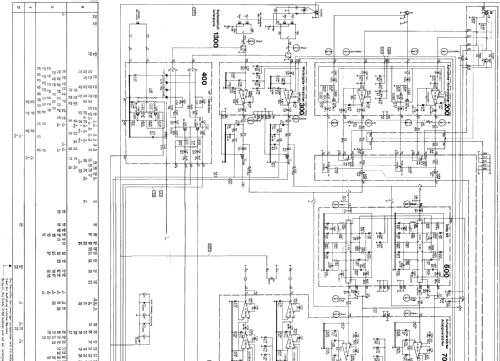

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 26

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Auto-Reverse4-Hi-Fi-Cassettenanlage CG360 - Uher Werke; München

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 400 x 295 x 104 mm / 15.7 x 11.6 x 4.1 inch

• Notes
• ICs: 22.
  Stereo-NF-Verstärker mit 2 Endstufen je 10 W (Sinus).

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Price in first year of sale
• 1,660.00 DM

• External source of data
• Erb

• Source of data
• Katalog RFP 1973 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Handbuch VDRG 1974/1975 (bis 1976/77)

• Literature/Schematics (1)
• Funkschau (8/1975, S. 97, 98, 99, 100)
