CG361

• Country
• Germany

• Manufacturer / Brand
• Uher Werke; München

• Year
• 1977 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 292660

• Picture

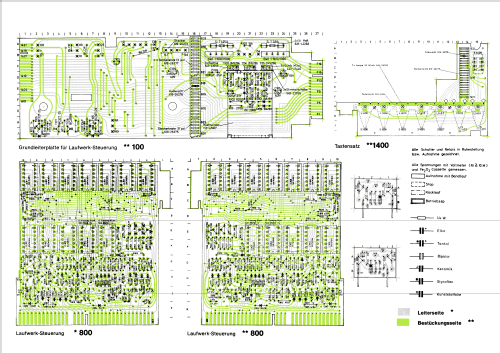

• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 59

• Semiconductors
• BC167 BC183 BC238 BC257 BC308 BC315 BC384 J174 NE545 SN76131 or. TBA231 TAA611

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: CG361 - Uher Werke; München

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 400 x 104 x 295 mm / 15.7 x 4.1 x 11.6 inch

• Notes

• Spurlage: 4-Spur Stereo nach DIN 45516
  Tonträger: Compact Cassette C60/90/120
  Bandgeschwindigkeit: 4,76 cm/s
  Frequenzbereich: 20-15000 Hz (CrO₂), 20-14000 Hz (Fe₂O₃), 20-15000 Hz (FeCr)

  Das Gerät ist eine Weiterentwicklung des Uher CG360 (u.a. Capstan-Motor, Entstörung, Tonköpfe, Anschlüsse).

  Anzahl IC: 7 (2x NE545B, 3x SN76131 oder TBA231, 2x TAA611
  Jeder Transistortyp ist nur einmal gelistet.
