Monitor CR-1601

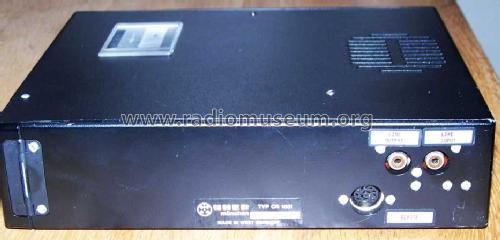

Monitor CR-1601; Uher Werke; München (ID = 1071713) R-Player Monitor CR-1601; Uher Werke; München (ID = 1071714) R-Player
Monitor CR-1601; Uher Werke; München (ID = 1071715) R-Player Monitor CR-1601; Uher Werke; München (ID = 1077248) R-Player
Use red slider bar for more.

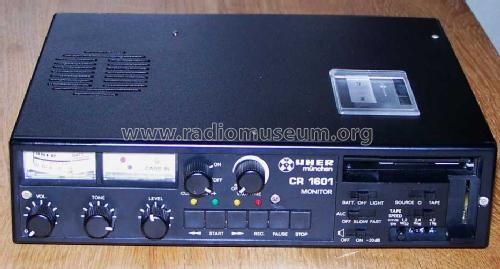

Monitor CR-1601; Uher Werke; München (ID = 1071713) R-Player
Uher Werke; München: Monitor CR-1601 [R-Player] ID = 1071713 933x502
Select picture or schematic to display from thumbnails on the right and click for download.
For model Monitor CR-1601, Uher Werke; München

Country:  Germany
Manufacturer / Brand:  Uher Werke; München
Year: 1988 ? Type: Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Storage batteries (perhaps also batteries) / 110-240; 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Monitor CR-1601 - Uher Werke; München
Material Metal case
Shape Portable set > 8 inch (usable without mains)
Dimensions (WHD) 233 x 184 x 58 mm / 9.2 x 7.2 x 2.3 inch
Notes Tragbares Kasettengerät, Mono, 3 Köpfe, Geschwindigkeiten 1,2/2,4/4,7 cm/s, Eingebaute Sprachsteuerung VAC, Hinterbandkontrolle, ALC.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)

Model page created by Felix Kreitlow. See "Data change" for further contributors.

All listed radios etc. from Uher Werke; München
Here you find 297 models, 260 with images and 151 with schematics.
