Royal de Luxe ab Nr. 2944 15102 Nussbaum

• Country
• Germany

• Manufacturer / Brand
• Uher Werke; München

• Year
• 1972/1973

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 28891

• Picture

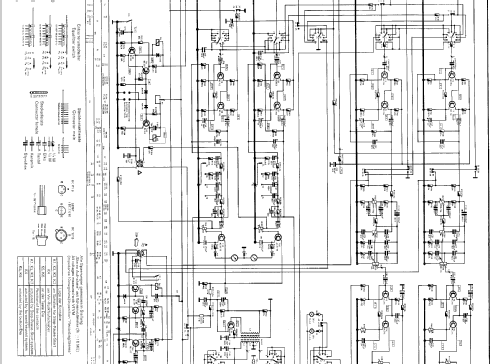

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 40

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org

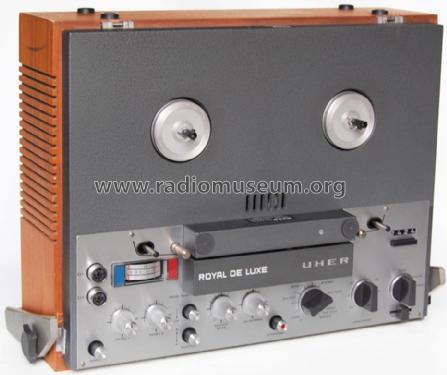

• Model: Royal de Luxe ab Nr. 2944 15102 [Nussbaum] - Uher Werke; München

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 465 x 188 x 350 mm / 18.3 x 7.4 x 13.8 inch

• Notes
• 40 Trans. / 7 Dioden; Nussbaum , auswechselbare Tonkopfträger erlauben 2- oder 4- Spurbetrieb, Hall- und Echo-Effekte, Synchro- und Multiplay, Mischmöglichkeit zweier Stereo-Programme, eingebauter Dia-Pilot zur Steuerung automatischer Dia-Projektoren, 2 x 10 Watt Sinus, Waagerecht- und Senkrechtbetrieb, maximal 18 cm Spulen, Geschwindigkeit: 19, 9,5, 4,75 und 2,4 cm/sec..

• Net weight (2.2 lb = 1 kg)
• 13.7 kg / 30 lb 2.8 oz (30.176 lb)

• Price in first year of sale
• 1,278.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1972/1973 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Schematic
