Stereo record II (2)
Uher Werke; München
- Country
- Germany
- Manufacturer / Brand
- Uher Werke; München
- Year
- 1961–1963
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 24243

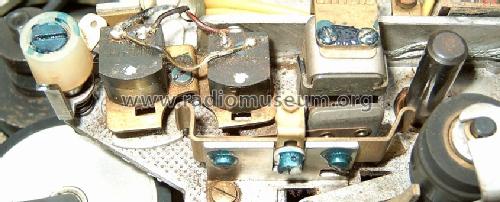

Ausführung mit 2 Löschköpfen
Ausführung mit 2 Löschköpfen

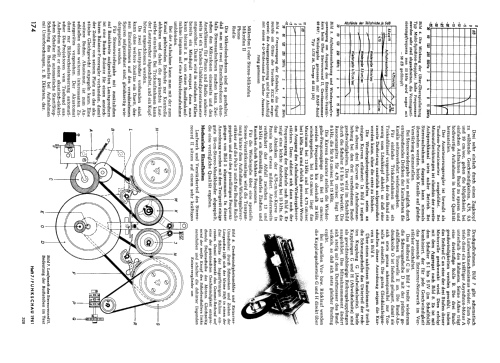

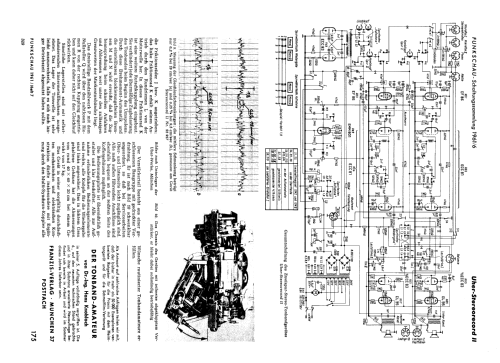

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Stereo record II - Uher Werke; München
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 395 x 200 x 420 mm / 15.6 x 7.9 x 16.5 inch
- Notes
- Technische Daten wie Stereo record III, jedoch in Zweispurtechnik.
- Net weight (2.2 lb = 1 kg)
- 16 kg / 35 lb 3.9 oz (35.242 lb)
- Price in first year of sale
- 938.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 2, Ernst Erb
