Model: 327






Antique radios, Old Time Radios

327
Country:
United States of America (USA)
Manufacturer/Brand:
Ultramar Mfg. Corp., Chicago
Year: 1939 ?
Type:
Radio or TunerBroadcast receiver (Radio).
Im Gegensatz zu Radioempfängern für kommerzielle und/oder militärische Zwecke und den frühen Empfängern für Morsezwecke nennen wir hier Radio bzw. Rundfunkempfänger. Aber: Gemäss internationaler Sprachregelung führt der Radiokatalog Band 1 alle Empfänger mit aktiven Bauteilen als RADIO. Wir unterscheiden hier ebenfalls nicht, ob mit Röhren bestückt, hybrid, mit Transistoren oder/und ICs.
Mod.-ID = 63897
previous
|
Result List
|
next
|
New search for Radios etc.
Schematics etc.: 1 (for
members)
Principle
Superhet with RF-stage; IF-Freq. 465 kHzSuperhet with a preamplification stage.
Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne avec préamplification de HF.
Superhet mit HF-Vorstufe.
Tuned circuits
9 AM circuit(s);
Wave bands
Broadcast plus 2 Short Wave bands.Mittelwellen und zwei Kurzwellen.
Bei der KW kann es sich um einen Gesamtbereich plus gespreiztes Band oder um zwei Bänder ohne Gesamtbereich handeln.
Power type and voltage
Storage Battery for all / 6 Volt
Loudspeaker/pwr.out
Electro Magnetic Dynamic LS (moving-coil with field excitation coil)Electro magnetic dynamic loudspeaker (moving-coil principle by Rice-Kellog) with field excitation coil - mostly used as choke.
Haut parleur dynamique avec bobine d`excitation - plus souvent aussi utilisé pour le self.
Elektrodynamischer Lautsprecher mit Erregerspule für das Magnetfeld (Fremderregung), meist gleichzeitig als Siebglied dienend.
www.radiomuseum.org
Model: 327
Valves / Tubes
8:
1A4
(more
for members)
Notes
Push-pull af output stage; tuning eye; synchr. vibrator for +B; home radio.
External source of data
Ernst Erb

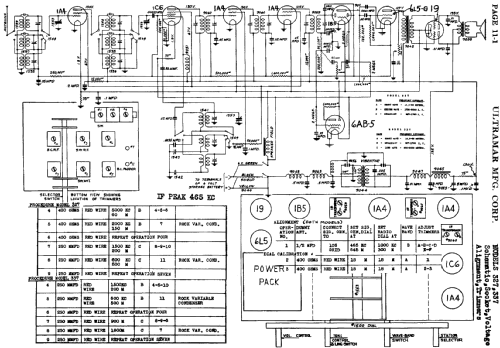

Circuit diagram reference
Rider's Perpetual, Volume 11Ave, RD 2, Canandaigua, NY 14424-9564, USA.
For your information:
Other big collections of schematics for the USA are the books «Most-Often-Needed Radio Diagrams», compiled by M.N.BEITMAN (beginning: 1926-1938 = Vol. 1).
and folders from:
Howard W. Sams Company, 2647 Waterfront Parkway East Drive, Indianapolis, IN 46214-2041, Tel.: 1-800-GET-SAMS or 1-800-428-5331 or 7267.
No further information
on
327 (Ultramar Mfg. Corp., Chicago)
