984817 Pontiac Chieftain

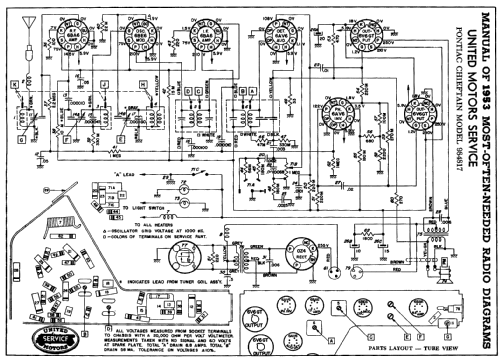

984817 Pontiac Chieftain ; United Motors (ID = 168293) Car Radio

984817 Pontiac Chieftain ; United Motors (ID = 168294) Car Radio
984817 Pontiac Chieftain ; United Motors (ID = 746861) Car Radio 984817 Pontiac Chieftain ; United Motors (ID = 746862) Car Radio
984817 Pontiac Chieftain ; United Motors (ID = 746863) Car Radio 984817 Pontiac Chieftain ; United Motors (ID = 797904) Car Radio
984817 Pontiac Chieftain ; United Motors (ID = 797905) Car Radio
Use red slider bar for more.
984817 Pontiac Chieftain ; United Motors (ID = 746861) Car Radio
United Motors: 984817 Pontiac Chieftain [Car Radio] ID = 746861 932x317
Select picture or schematic to display from thumbnails on the right and click for download.
For model 984817 Pontiac Chieftain, United Motors Service (Delco)

Country:  United States of America (USA)
Manufacturer / Brand:  United Motors Service (Delco)
alternative name

Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
Brand
Chieftain || Delco
Year: 1953 ? Type: Car Radio
Valves / Tubes 8: 6BA6 6BE6 6BA6 6AV6 6AV6 6V6GT 6V6GT 0Z4
Principle Superhet with RF-stage; ZF/IF 260 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 984817 Pontiac Chieftain - United Motors Service Delco
Material Metal case
Notes Vibrator for +B
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 13, 1953

Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.



All listed radios etc. from United Motors Service (Delco)
Here you find 558 models, 272 with images and 538 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
