36-B

36-B ; United American (ID = 704071) Radio
Use red slider bar for more.
36-B ; United American (ID = 704071) Radio

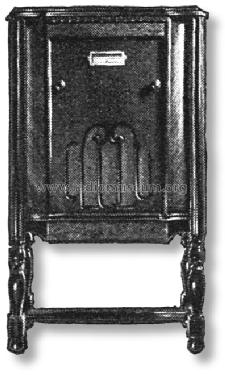

United American: 36-B [Radio] ID = 704071 396x660
Select picture or schematic to display from thumbnails on the right and click for download.
For model 36-B, United American Bosch; Springfield (MA):
Image Courtesy of Mark V. Stein for Radiomuseum.org use only.

Country:  United States of America (USA)
Manufacturer / Brand:  United American Bosch; Springfield (MA)
alternative name

American Bosch Magneto
Brand
Essex
Year: 1932 ? Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6:
Principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC)  Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 36-B - United American Bosch;
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Price in first year of sale 56.00 $
External source of data Ernst Erb
Source of data Radio Collector`sGuide 1921-
Mentioned in Pre-War Consoles; Stein, 2000
Literature/Schematics (1) Collector's Guide to AR7.Ed. Slusser tube

All listed radios etc. from United American Bosch; Springfield (MA)
Here you find 397 models, 127 with images and 257 with schematics.
