- Country
- United States of America (USA)
- Manufacturer / Brand
- United American Bosch (Magneto Corporation); Springfield (MA)
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 285108
-
- alternative name: American Bosch Magneto
- Brand: Essex
My Personal Collection
My Personal Collection
My Personal Collection.
My Personal Collection
My Personal Collection
My Personal Collection
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; Export model
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 40-60 Hz, 110-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 854 K T14 - United American Bosch Magneto
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 32 x 42 x 14 inch / 813 x 1067 x 356 mm
- Notes
-

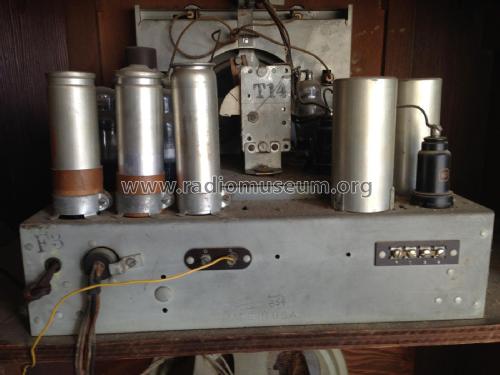

Tuner has outer fine tune large knob and inner gross tuning second knob. Chassis is identical to 853 and 855 American Bosch and same as Westinghouse WR 332 but with manual tuner.
- Author
- Model page created by Don Stickley. See "Data change" for further contributors.
