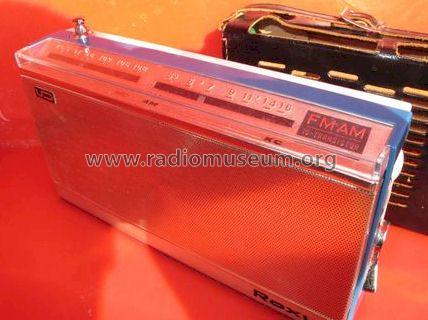

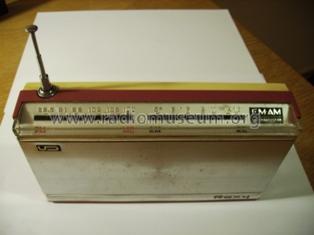

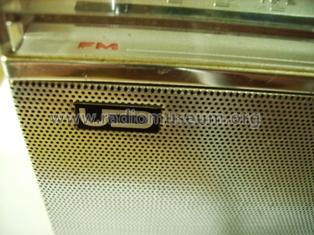

Roxy FM AM 10 Transistor UR-300

Usui Denki Co., Ltd.; Yokohama

  • Year
  • 1968 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 120761
    • Brand: Roxy

 Technical Specifications

  • Number of Transistors
  • 10
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Batteries / addl. power jack / AA: 4 x 1.5 / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Roxy FM AM 10 Transistor UR-300 - Usui Denki Co., Ltd.; Yokohama
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 185 x 110 x 44 mm / 7.3 x 4.3 x 1.7 inch
  • Notes
  • Kann mit 4 x 1,5 V Mignon (AA) Batterien oder einem externen Netzteil betrieben werden.

  • Net weight (2.2 lb = 1 kg)
  • 0.6 kg / 1 lb 5.1 oz (1.322 lb)
  • Author
  • Model page created by Thomas Witkenkamp. See "Data change" for further contributors.
