VEF Super 4MD/34

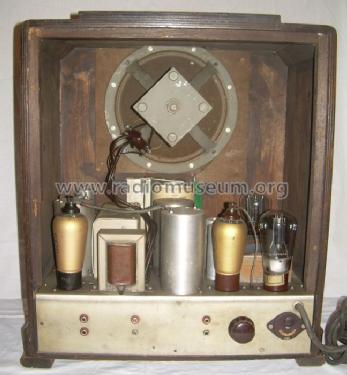

VEF Super 4MD/34; VEF; Riga, Latvia (ID = 534037) Radio VEF Super 4MD/34; VEF; Riga, Latvia (ID = 534040) Radio
VEF Super 4MD/34; VEF; Riga, Latvia (ID = 534039) Radio VEF Super 4MD/34; VEF; Riga, Latvia (ID = 534042) Radio
VEF Super 4MD/34; VEF; Riga, Latvia (ID = 534045) Radio VEF Super 4MD/34; VEF; Riga, Latvia (ID = 1803477) Radio
Use red slider bar for more.
VEF Super 4MD/34; VEF; Riga, Latvia (ID = 534037) Radio
VEF; Riga, Latvia: VEF Super 4MD/34 [Radio] ID = 534037 605x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model VEF Super 4MD/34, VEF; Riga, Latvia (Lettland):

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  VEF; Riga, Latvia (Lettland):
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 E446 E444 E463 1561
schematic requested
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120/220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: VEF Super 4MD/34 - VEF; Riga, Latvia Lettland:
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 405 x 455 x 245 mm / 15.9 x 17.9 x 9.6 inch
Source of data - - Data from my own collection
Literature/Schematics (1) - - Manufacturers Literature

Model page created by a member from LV. See "Data change" for further contributors.
