• Country
• People's Republic of China

• Manufacturer / Brand
• Fujian Baofeng Electronic Co., Ltd.; Quanzhou

• Year
• 2012

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 230580

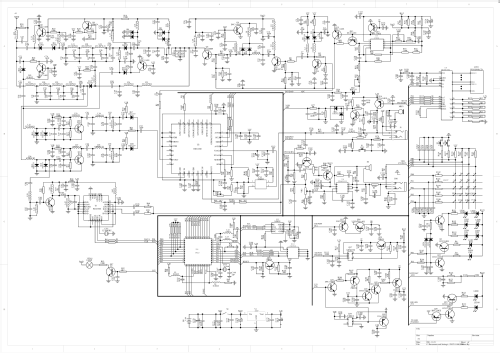

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 34

• Semiconductors

• Main principle
• Transceiver

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 7.4 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: VHF/UHF Handheld Transceiver Baofeng UV-5R - Fujian Baofeng Electronic Co.,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 58 x 110 x 32 mm / 2.3 x 4.3 x 1.3 inch

• Notes

• Receive Only Frequency Range is 65 to 108 MHz Commercial FM Broadcast Band.

  FM Transceiver; Frequency Ranges 136-174 MHz and 400-480 MHz; Output RF Power 4W or 1W; 128 Channels; 50 Ohm Dual Band built-in Antenna; 50 CTCSS and 104 CDCSS; 1750 Hz Tone Burst; Dual Band Display; Dual Frequency Display; Channel Step 2.5, 5, 6.25, 10, 12.5 and 25 kHz; suitable for use AO-27, AO-51 and SO-50 amateur's satellite too.

  Model UV-5RE has same technical specifications, but different panel.

  See also model Baofeng UV-5RA with UHF range 400-520 MHz.

• Net weight (2.2 lb = 1 kg)
• 0.250 kg / 0 lb 8.8 oz (0.551 lb)

• Price in first year of sale
• 30.00 USD

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Emilio Focosi. See "Data change" for further contributors.
