VP-100

VP-100 ; Viewtone Company; N. (ID = 445764) Television

VP-100 ; Viewtone Company; N. (ID = 445765) Television

VP-100 ; Viewtone Company; N. (ID = 445766) Television

VP-100 ; Viewtone Company; N. (ID = 445767) Television
Use red slider bar for more.
VP-100 ; Viewtone Company; N. (ID = 445764) Television

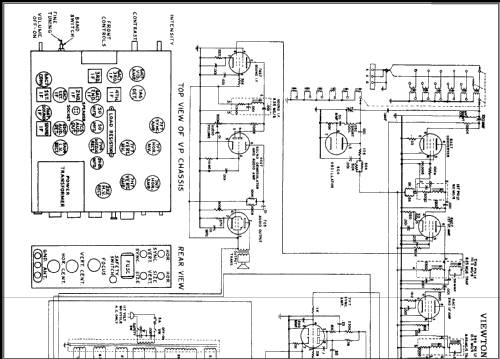

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Viewtone Company; N.Y. N.Y
Year: 1946 Type: Television Receiver (TV) or Monitor
Valves / Tubes 19: 6AC7 6C4 6AC7 6AC7 6AC7 7A6 6AC7 7F7 7F7 7N7 7F7 7N7 7AG7 6SQ7 7C5 7Y4 5U4G 2X2 7EP4
Principle Super-Heterodyne (Super in general); ZF/IF 8250 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: VP-100 - Viewtone Company; N.Y. N.Y
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes 7" static deflection round tube TV with 6 channel US VHF Band I Tuner, 3.000V acceleration voltage, AM! audio demodulation, some tubes are equipped more than one time.
Price in first year of sale 100.00 $
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 16 = ca. 1948 and before
