• Year
  • 1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 72942

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

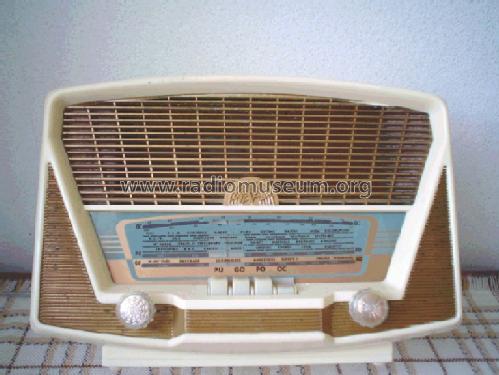

  • Model: Vissostar - Star - Visseaux / Télévisso; Lyon /
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 290 x 195 x 165 mm / 11.4 x 7.7 x 6.5 inch
  • Notes

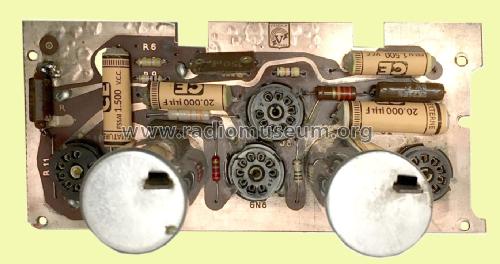

  • 3 gammes d'ondes dont OC ou bande étalée (BE). Clavier 4 touches (bloc Optalix 4340). Cadre ferrite de 200 mm. Prise antenne spéciale pour OC. Câblage par circuit imprimé.

    Coffret polystyrène crème et or.

    Ce modèle est appellé "Vissostar" dans les publicités, mais on ne trouve que "Star" sur la plaque du type.

  • Net weight (2.2 lb = 1 kg)
  • 4.2 kg / 9 lb 4 oz (9.251 lb)
  • Mentioned in
  • -- Original prospect or advert
