Sonar GN103-S
Voxson, FARET (F.A.R.E.T.); Roma
- Country
- Italy
- Manufacturer / Brand
- Voxson, FARET (F.A.R.E.T.); Roma
- Year
- 1974 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 206485
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 19
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Special Tape or Cassette-Format
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 13,5 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 7 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Sonar GN103-S - Voxson, FARET F.A.R.E.T.; Roma
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 150 x 53 x 187.5 mm / 5.9 x 2.1 x 7.4 inch
- Notes
-

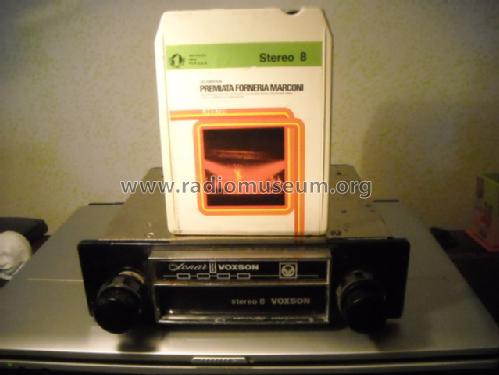

Riproduttore per cartucce a nastro magnetico del sistema stereo 8 da installare in automobile.
Tutti i semiconduttori sono elencati uno per tipo: 19 Transistor e 7 diodi.
Possibilità di funzionare con positivo o negativo a massa.La versione per l'estero ha una media frequenza di 452 kHz.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Literature/Schematics (2)
- -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
