Werra A6/653/WKB

Werra A6/653/WKB; Walter Funk-Werk, (ID = 12188) Radio
Werra A6/653/WKB; Walter Funk-Werk, (ID = 58532) Radio Werra A6/653/WKB; Walter Funk-Werk, (ID = 58535) Radio
Werra A6/653/WKB; Walter Funk-Werk, (ID = 58534) Radio Werra A6/653/WKB; Walter Funk-Werk, (ID = 58536) Radio
Werra A6/653/WKB; Walter Funk-Werk, (ID = 1613688) Radio Werra A6/653/WKB; Walter Funk-Werk, (ID = 1613689) Radio
Werra A6/653/WKB; Walter Funk-Werk, (ID = 1613690) Radio Werra A6/653/WKB; Walter Funk-Werk, (ID = 1613691) Radio
Use red slider bar for more.
Werra A6/653/WKB; Walter Funk-Werk, (ID = 58532) Radio

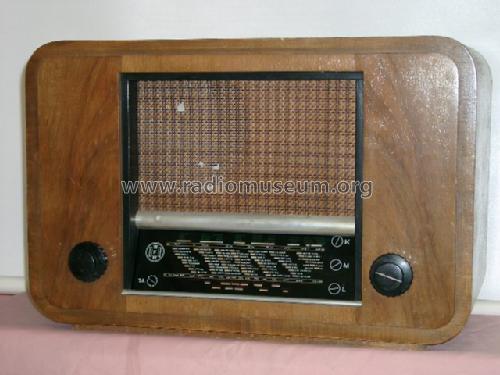

Walter Funk-Werk,: Werra A6/653/WKB [Radio] ID = 58532 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Werra A6/653/WKB, Walter Funk-Werk, Lauscha , WFW, (Ostd.):
DDR_WFW_Walter_ Funk_1951_Werra A6-653-WKB

Country:  Germany
Manufacturer / Brand:  Walter Funk-Werk, Lauscha , WFW, (Ostd.)
Brand

Walter-Funk
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6SA7_DDR 6SK7_DDR 6SQ7_DDR 6V6_DDR AZ11 or EZ12
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Werra A6/653/WKB - Walter Funk-Werk, Lauscha ,
Material Wooden case
Notes (4 OSW-Röhren); obenliegende Skala, gr. LS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 3


All listed radios etc. from Walter Funk-Werk, Lauscha , WFW, (Ostd.)
Here you find 17 models, 12 with images and 12 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
