• Year
  • 1975–1977
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 134145
    • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

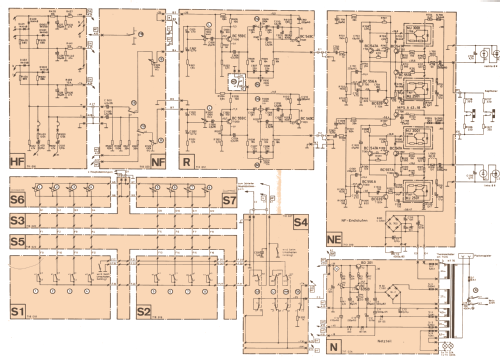

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 27
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 50 W (unknown quality)
  • from Radiomuseum.org
  • Model: Studio 3230 HiFi - Wega, Württembergische Radio-
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 670 x 160 x 365 mm / 26.4 x 6.3 x 14.4 inch
  • Notes

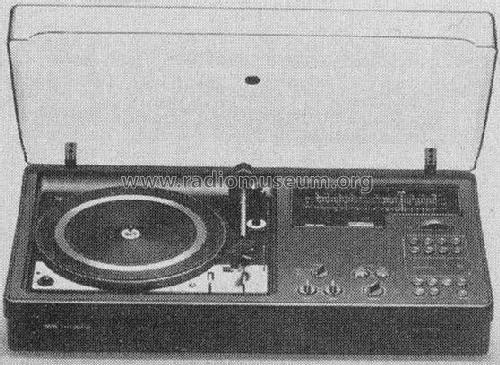

  • Wega Stereo-Kompaktgerät HiFi 3230
    Ausgangsleistung: 2× 25 W (Sinus)
    8 Speichertasten für FM
    Phono-Chassis = Dual 1226 mit Magnetsystem Shure M75.
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model Studio is part of the collections of the following members.

 Forum

Forum contributions about this model: Wega,: Studio 3230 HiFi

Threads: 1 | Posts: 1

Ich habe kürzlich so ein Gerät für CHF 1.- erworben und demontiert, weil das Gehäuse und die Staubschutzhaube defekt waren.

Die Innereien habe ich aufgehoben. Kontaktieren sie mich bei Bedarf.

Marc Gianella, 25.Sep.22
