• Year
  • 1970/1971
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 28073
    • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

 Technical Specifications

  • Number of Transistors
  • 37
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     14 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org

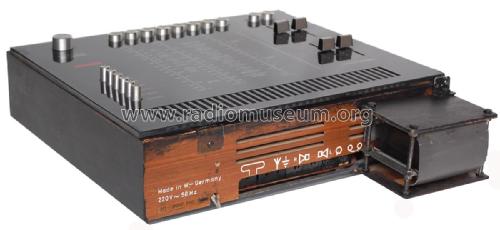

  • Model: Musikstudio 3203FET [Nussb.] - Wega, Württembergische Radio-
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 715 x 186 x 327 mm / 28.1 x 7.3 x 12.9 inch
  • Notes
  • HiFi-Stereo-Steuergerät mit Plattenspieler Dual 1215; NF-Verstärker mit 2 Endstufen je 18 W (Sinus).
    Gehäuse in Nussbaum. Siehe auch Variante in Palisander, Teak oder Schleiflack, weiss.
  • Net weight (2.2 lb = 1 kg)
  • 14.4 kg / 31 lb 11.5 oz (31.718 lb)
  • Price in first year of sale
  • 1,278.00 DM
  • External source of data
  • Erb
