• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1971–1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28451

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 58

• Semiconductors
• 40823 BC239 BF343 40673 BF241 BF245 BC237 BC251 BC107 40360 2N6179 2N6181 40636 2N5298 TAA991 CA3053 TBA480 TBA490 µA739

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     19 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 90 W (130 W max.)

• Material
• Metal case

• from Radiomuseum.org

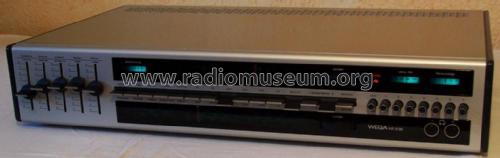

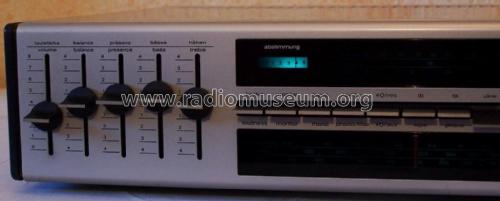

• Model: HiFi 3120 - Wega, Württembergische Radio-

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 600 x 115 x 370 mm / 23.6 x 4.5 x 14.6 inch

• Notes

• ICs: 5.
  HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 45 W (Sinus).

  7 Programmspreicher für UKW, 2 Lautsprechergruppen schaltbar,

  Halbleitertypen nur einmal hinterlegt

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Price in first year of sale
• 1,695.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972

• Mentioned in
• Handbuch VDRG 1972/1973

• Literature/Schematics (1)
• Funk-Technik (FT) (17/1971, S. 651 - 658 / Beschreibung, Daten, Schema)

• Literature/Schematics (2)
• Funk-Technik (FT) (6/1972, S. 191 - 194 / Schaltungstechnische Besonderheiten, Teilschema)
